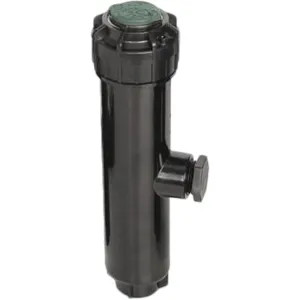

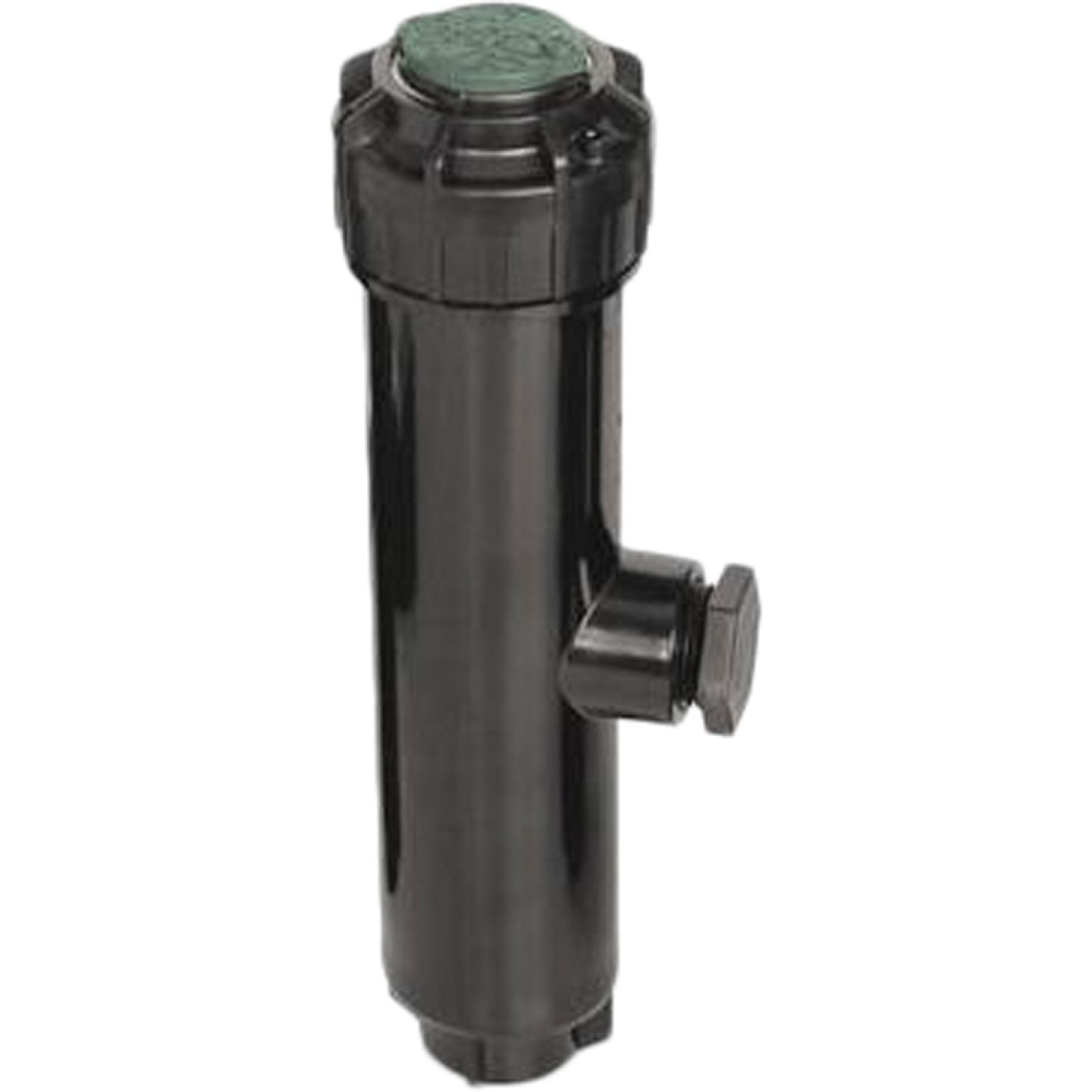

Rainbird 5006PLPCS 6" Part/Reverse Full Circle Rotor Sprinkler With SAM

Name: Rainbird 5006PLPCS 6" Part/Reverse Full Circle Rotor Sprinkler With SAM
Brand: Rainbird
SKU: 41523
Price: 29.06 USD
Availability: PreOrder

SKU: 41523

-40.2%

$ 29 .06 / ea

$ 48 .59 / ea

Qty

remove

add

inventory_2 Unlimited Availability

add_shopping_cart Add To Cart

local_shipping Available to Ship in 2-3 weeks

factory Orders from the Manufacturer

Product Details

Manufacturer:	Rainbird
Product:	Rotor
Mpn #	5006PLPCS
Weight	0.78 lbs.

About the Rainbird 5006PLPCS

Product Features

3/4" (20/27) NPT female bottom threaded inlet
Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
Full circle only adjustment 360 Degrees
Heavy-duty cover assembly for extra durability.
Heavy-duty retract spring assures positive pop-down.
Improving nozzle distribution uniformity by operating the nozzle at optimum pressure
In-stem pressure regulator (PRS) reduces operating pressure to 45 psi (3,1 bar) for optimal nozzle performance
Maintenance-free design can be easily retrofitted into existing 5000/5000 Plus, T-Bird and Hunter PGP (using UPG model) rotor cases without digging up the entire body
Optional Pressure Regulating Stem (PRS) which regulates pressure at the head, assuring optimum performance.
Optional Seal-A-Matic (SAM) check valve which prevents water from pooling at the base of slopes or hillsides.
Optional stainless steel riser helps deter vandalism on public turf areas (4" and 6" 5000 Plus / 5000 Plus PRS only)
40 - 360 Degrees arc rotation and reversing full circle rotation in one.
Overall body height: Shrub: 7 3/4" (19,7cm) 4": 7 3/8" (18, 5 cm); 6": 9 5/8" (24,5 cm); 12": 16 7/8" (42,9 cm)
Pop-up height: Shrub; 4" (10,2 cm); 6" (15,2 cm); 12" (30,5 cm)
Precipitation rate: 0.20 to 1.01 inches per hour (5 to 26 mm/h)
Pressure: 25-65 psi (1,7 to 4,5 bar)
Pressure: 25-75 psi (1,7 to 5,2 bar)
Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction.
PRS saves water by: Eliminating head-to-head pressure variations Eliminating misting due to high pressure Improving nozzle distribution uniformity by operating the nozzle at optimum pressure
Radius adjustment screw allows up to 25% radius reduction without changing nozzles.
Radius may be reduced up to 25% with radius reduction screw
Radius: 25 to 50 feet (7,6 to 15,2 m)
5000, 5000 Plus and 5000 Plus PRS Series Rotors are available in 4", 6", 12", Shrub, and Stainless Steel (5000 Plus/5000 Plus PRS 4" & 6" only) models.
Rain Curtain Nozzles.
Reinforced flow path for additional side load strength.
Reversing full and part circle adjustment 40 Degrees-360 Degrees
Slip clutch mechanism for quick adjustment on installation.
Standard rubber cover for extra protection. 5000 Plus/5000 Plus PRS feature a green cover while the 5000 features a black cover.
The 5000 Plus features a Flow Shut-Off device to stop the flow of water to a particular head while the system is still in operation.
Top-adjust arc adjustment requiring only a flat-blade screwdriver.
True 4" (10 cm), 6" (15,2 cm) and 12" (30,5 cm) pop-up (measured from the cover to the nozzle).
Additional O-rings and seals for extra protection in "gritty" water.
Eliminating head-to-head pressure variations
Eliminating misting due to high pressure
Exposed surface diameter: 1 5/8" (4,1 cm)
Faster maintenance with a new self-cleaning arc adjustment screw.
Five-year trade warranty.
