Core VS310U-V-K Occupancy/Vacancy Sensor Switch, 1000 W, 120 VAC, 1000 sq-ft, 180 deg

SKU: 586869

Save 24% · Retail: $36.79

In Stock and Ready to Ship

Ships From Price Qty
Texas Warehouse
Available to Ship in 3-5 days
$28.28/ea 15
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Core VS310U-V-K

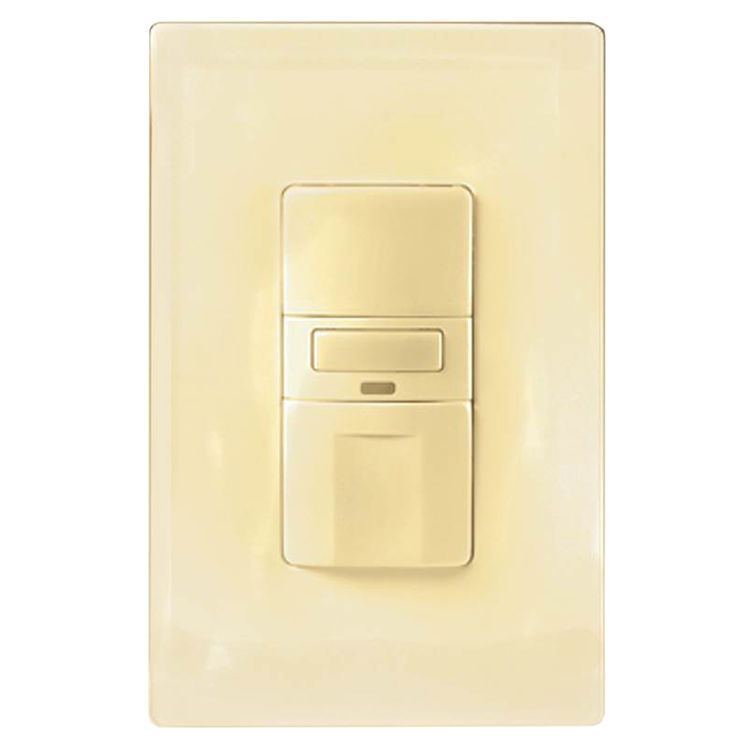

Core VS310U-V-K Occupancy/Vacancy Sensor Switch, 1000 W, 120 VAC, 1000 sq-ft, 180 deg

Product Details

Mpn # VS310U-V-K
Shipping Dimensions 4.8" x 10.0" x 6.3"
Weight 2.00 lbs.

Product Features

  • Voltage Rating: 120 VAC
  • Wattage: 1000 W
  • Amperage Rating: 8.3 A
  • Frequency Rating: 60 Hz
  • Sensor Type: Automatic On
  • Sensing Range: 1000 sq-ft
  • Sensing Angle: 180 deg
  • Timer Range: 5 sec - 30 min
  • Connection: Pre-Stripped Wire Leads
  • Mounting Type: Wall
  • Temperature Rating: 0 - 40 deg C
  • Material: Polycarbonate
  • Finish: Gloss
  • Includes: (1) Mid-Size Decorator Wallplate
  • Standards: cUL Listed, NOM Certified, RoHS Compliant
  • Passive Infrared technology
  • Selectable ON/OFF LED nightlight with press and hold dimming function
  • Green LED indicates load status, provides locator light in dark and blinks to indicate motion detection
  • Selectable time delay of 5 sec (test), 5 min, 15 min and 30 min for lights to remain on after room is vacated
  • Selectable ambient light override when there is acceptable natural light
  • Uniform color matched PIR lens to device housing
  • Bypass feature to allows the sensor to perform as a traditional switch (Manual ON/Manual OFF)
