Coleman Cable 553056607 Barostat 553056607 Solid Type CL-2 Thermostat Cable, 18 AWG, 250 ft, 0.006 in T Polypropylene
View 2 of Coleman Cable 553056607 Barostat 553056607 Solid Type CL-2 Thermostat Cable, 18 AWG, 250 ft, 0.006 in T Polypropylene
View 3 of Coleman Cable 553056607 Barostat 553056607 Solid Type CL-2 Thermostat Cable, 18 AWG, 250 ft, 0.006 in T Polypropylene

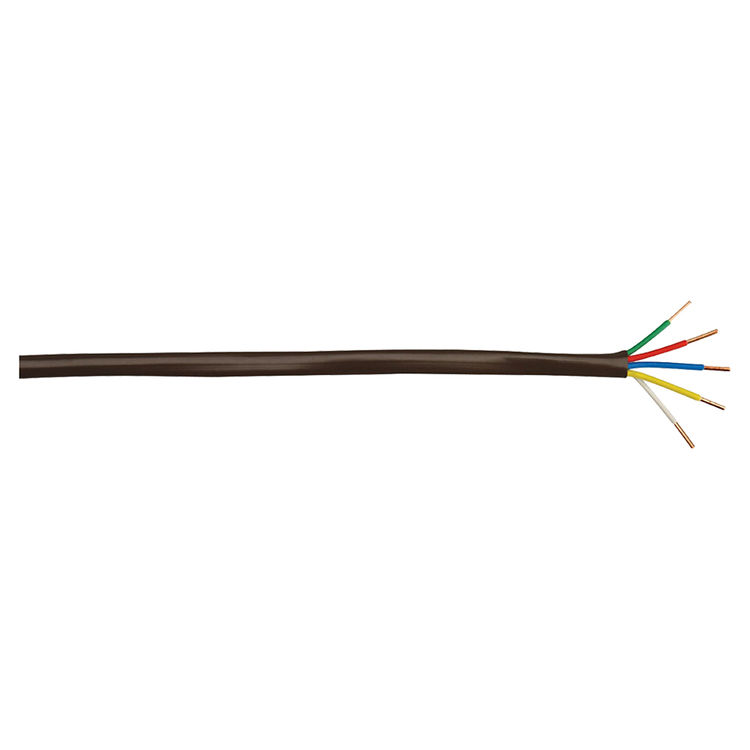

Barostat 553056607 Solid Type CL-2 Thermostat Cable, 18 AWG, 250 ft, 0.006 in T Polypropylene

SKU: 585705
$ 138.60 / ea
Save 36% · Retail: $217.80

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks




Ships From Price Qty
Austin Texas Warehouse
Ships in 5-7 Days
$138.60/ea 3
Sikeston Missouri Warehouse
Ships in 5-7 Days
$138.60/ea 10
Order From Manufacturer
Available to Ship in 4-5 weeks
$138.60/ea ∞

About the Barostat 553056607 Solid Type CL-2 Thermostat Cable, 18 AWG, 250 ft, 0.006 in T Polypropylene

Barostat 553056607 Solid Type CL-2 Thermostat Cable, 18 AWG, 250 ft, 0.006 in T Polypropylene

Mpn # 553056607
Shipping Dimensions 11.0" x 11.0" x 7.0"
Weight 8.00 lbs.
  • Type: Solid, Type CL-2
  • Conductor Size: 18 AWG
  • Numberof Conductors: 5
  • Conductor Material: Bare Copper
  • Length: 250 ft
  • Outside Diameter: 0.17 in
  • Voltage Rating: 150 V
  • Insulation Type: 0.006 in Thickness Polypropylene
  • Jacket Type: 0.015 in Thickness PVC
  • Jacket Color: Brown
  • Temperature Rating: -20 TO 60 deg C
  • Resistance: 6.32 ohm
  • Standards: CSA Certified, UL Listed
  • Special: 0.052 In Insulated Conductor
  • Usage: For Class 2 Power Limited Circuit Cable Used in Thermostat Control Applications
  • Conductor 18 AWG soft annealed solid copper per ASTM B3-90
  • PVC thermostatic insulation, temperature 60 deg c
  • Used for thermostat controls, heating and air conditioning installations, burglar alarm systems, intercom systems and doorbells
  • PVC insulation UL13 for power limited circuit cable for other than plenum, riser, or tray uses and UL1581 approved
  • Heating and air conditioning installations burglar alarm systems intercom systems and doorbells
  • Smooth jacket eliminates snagging and tearing
  • PVC jacket, polypropylene insulation ensures excellent strip ability
