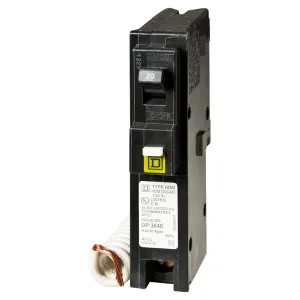

HomeLine HOM120CAFIC Arc Fault Combination Circuit Breaker, 120/240 VAC, 20 A, 1 P, 10 kA
SKU: 591541
$65.39
/
ea
Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!
Available to Ship in 4-5 weeks
Ships From
Price
Qty
About the Square D HOM120CAFIC
About the HomeLine HOM120CAFIC Arc Fault Combination Circuit Breaker, 120/240 VAC, 20 A, 1 P, 10 kA
HomeLine HOM120CAFIC Arc Fault Combination Circuit Breaker, 120/240 VAC, 20 A, 1 P, 10 kA
Product Details
Mpn #
HOM120CAFIC
Shipping Dimensions
4.6" x
3.7" x
6.9"
Weight
1.00 lbs.
Product Features
Type: Arc Fault Combination
Voltage Rating: 120/240 VAC
Amperage Rating: 20 A
Phase: 1
Frame: 100A
Trip Type: Fixed
Interrupt Rating: 10 kA
Numberof Poles: 1
Terminal Type: Screw Clamp
Mounting Type: Plug In
Overall Depth: 1.2 in
Standards: ANSI Specified, UL Listed
Usage: For Homeline Load Centers and CSED Devices
HOM one-pole standard circuit breakers (15 - 50 A)
HOM two-pole standard circuit breakers (15 - 200 A)
HOM tandem breakers (1-pole, 15/15 A, 20/20 A, 15/20 A, 20/30 A)
HOM quad tandems circuit breakers (1- and 2-pole, 15 A to 50 A)
HOM ground-fault circuit interrupters (1 and 2-pole, 15 - 50 A)
Square D arc-fault circuit-interrupters (1-pole, 15 A and 20 A)
Square D combination arc-fault circuit interrupters (1-pole, 15 A and 20 A)
