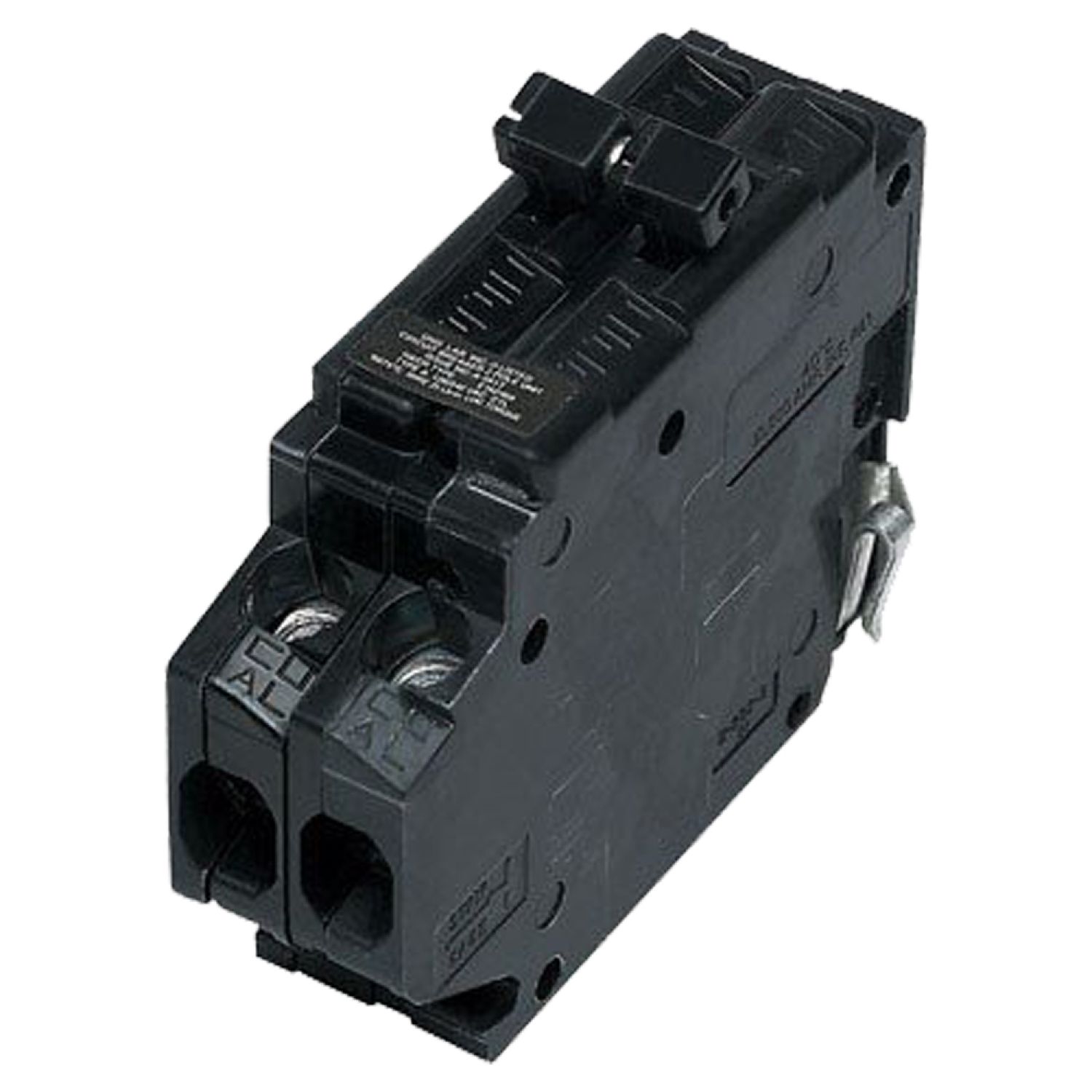

Connecticut UBITB-A230 Connecticut UBITB-A230 Type UBITBA Circuit Breaker, 120/240 VAC, 30 A, 2 P, 10 kA

Connecticut UBITB-A230 Type UBITBA Circuit Breaker, 120/240 VAC, 30 A, 2 P, 10 kA

SKU: 586034
$ 67.19 / ea
Save 7% · Retail: $71.95

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks




Ships From Price Qty
Austin Texas Warehouse
Ships in 5-7 Days
$71.51/ea 8
Sikeston Missouri Warehouse
Ships in 5-7 Days
$71.51/ea 4
Order From Manufacturer
Available to Ship in 4-5 weeks
$67.19/ea ∞

About the Connecticut UBITB-A230 Type UBITBA Circuit Breaker, 120/240 VAC, 30 A, 2 P, 10 kA

Connecticut UBITB-A230 Type UBITBA Circuit Breaker, 120/240 VAC, 30 A, 2 P, 10 kA

Voltage: 120
Amperage: 30 amps
Mpn # UBITB-A230
Shipping Dimensions 2.0" x 4.0" x 6.0"
Weight 0.50 lbs.
  • Type: Type UBITBA
  • Voltage Rating: 120/240 VAC
  • Amperage Rating: 30 A
  • Phase: 1
  • Frame: 125A
  • Interrupt Rating: 10 kA
  • Numberof Poles: 2
  • Terminal Type: Lug
  • Mounting Type: Plug In
  • Overall Depth: 2.6 in
  • Standards: ETL/UL Listed
  • Special: Panelboard Mount
  • Usage: Used in Thomas and Betts/Challenger Load Centers
  • Typical applications (suggestions only) include hot water heaters, clothes dryers, air conditioners (240 V, up to 36000 BTU) and electric motors (240 V, 1-1/2 - 3 hp), all up to 13200 W
  • HACR rated
