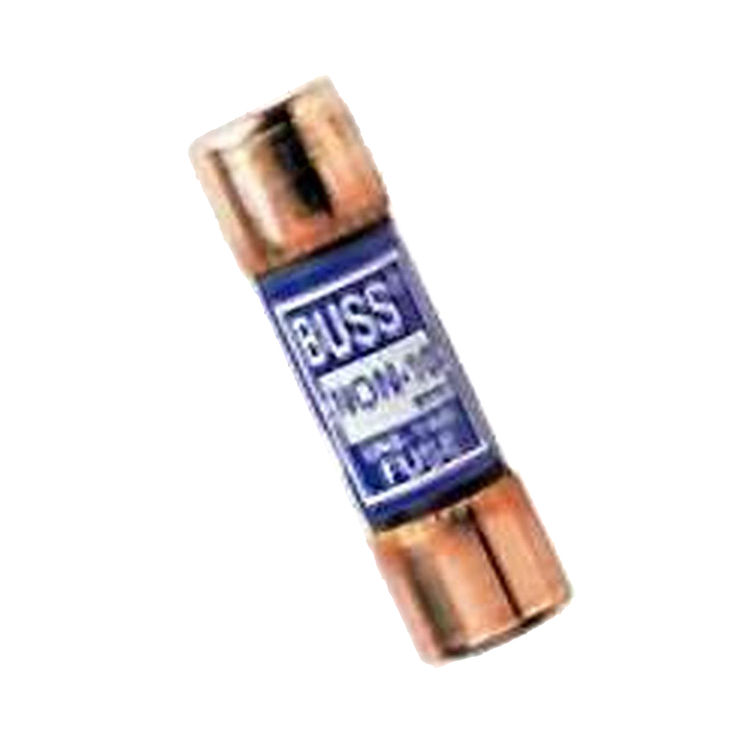

Bussmann NON-20 Bussmann Fusetron NON-20 Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 20 A

Bussmann Fusetron NON-20 Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 20 A

SKU: 585546
$ 2.24 / ea
Save 13% · Retail: $2.58

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$2.24/ea ∞

About the Bussmann Fusetron NON-20 Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 20 A

Bussmann Fusetron NON-20 Cartridge One Time Non-Current Limiting Low Voltage Fast Acting Fuse, 20 A

Amperage: 20 amps
Material: Melamine
Mpn # NON-20
Shipping Dimensions 3.0" x 2.2" x 1.9"
Weight 0.05 lbs.
Shipping Dimensional Weight 0.07 lbs.
  • Series: NON
  • Type: Cartridge, One Time, Non-Current Limiting, Low Voltage
  • Amperage Rating: 20 A
  • Voltage Rating: 250 VAC/125 VDC
  • Interrupt Rating: 50 kA
  • Class: K5
  • Material: Melamine
  • Terminal: Ferrule
  • Body Style: Non-Rejection Cylindrical
  • Diameter: 9/16 in
  • Standards: CE Certified, CSA Certified, UL Listed
  • Element: Single
  • Length: 2 in
  • Usage: For General Purpose Circuits, Lighting Circuits, Main Panel Protection
  • Fuse Holder Code: H
  • Protect lighting, heating, and other circuits not subject to temporary surges and where available short circuit currents are relatively low
  • One-time fuses do not have a time delay feature and thus should not be specified in circuits where large transients or motor overloads occur
  • Use Buss Fusetron or Low Peak dual element, time delay fuses
  • For motor circuits, size at 300% - 400%
