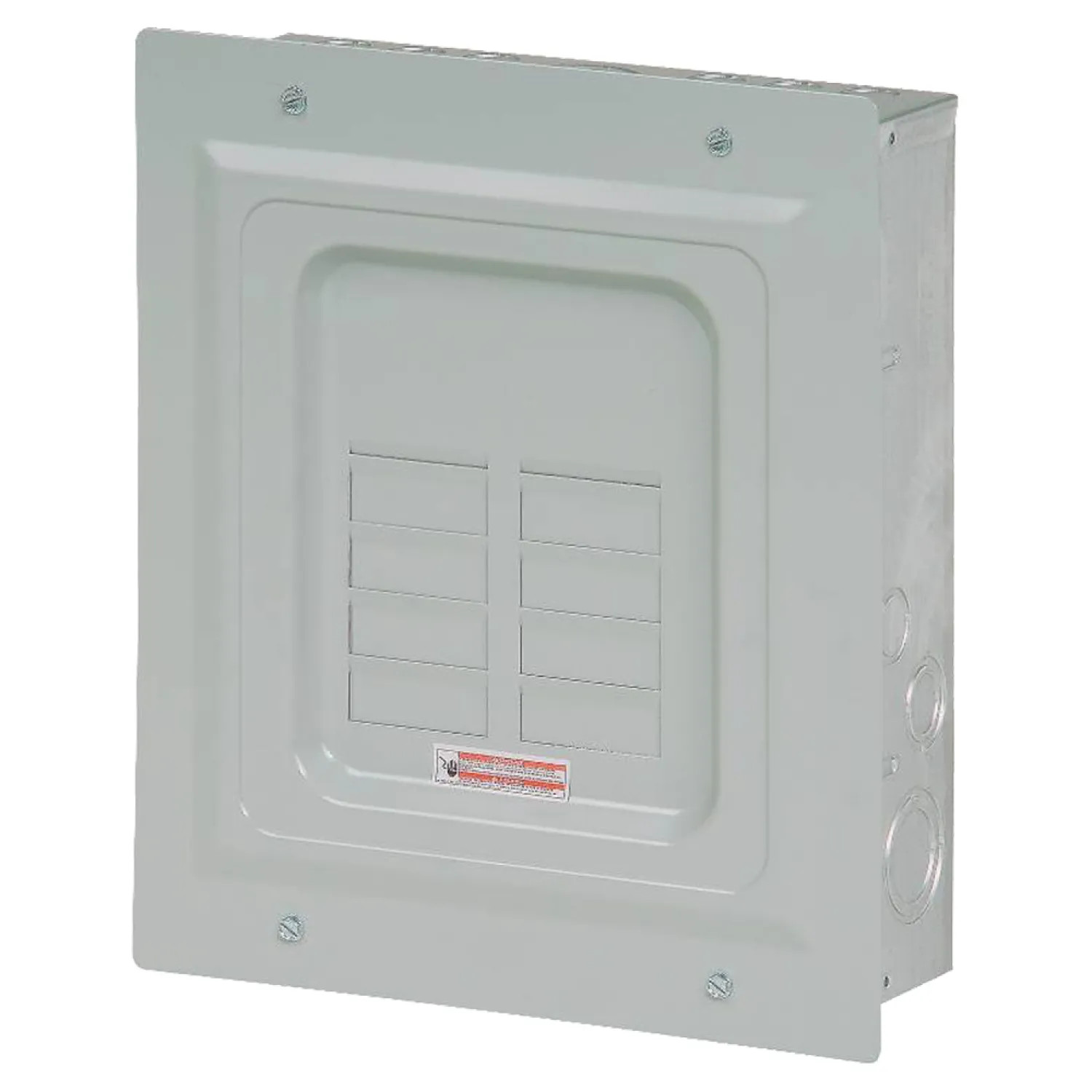

Eaton BR816L125FP Load Center, 120/240 VAC, 125 A, Main Lug
SKU: 587037
$42.09 / ea
Qty
remove
add
inventory_2Unlimited Availability
add_shopping_cartAdd To Cart
local_shippingAvailable to Ship in 4-5 weeks
factoryOrders from the Manufacturer
You are ordering a Non-Returnable Product
Please make sure you understand the item and the dimensions before ordering.
By Clicking "Add to Cart", you acknowledge that this product is not eligible for returns
Product Details
Voltage:
120
Amperage:
125 amps
Mpn #
BR816L125FP
Shipping Dimensions
12.7" x
15.2" x
4.3"
Weight
9.60 lbs.
About the Eaton BR816L125FP
About the Eaton BR816L125FP Load Center, 120/240 VAC, 125 A, Main Lug
Eaton BR816L125FP Load Center, 120/240 VAC, 125 A, Main Lug
Product Features
Series: BR
Voltage Rating: 120/240 VAC
Amperage Rating: 125 A
Includes: Cover Door
Numberof Phases: 1
Interrupt Rating: 10 kA
Standards: ANSI Specified, UL Listed
Wiring Configuration: 3-Wire
Usage: For Installing a Breaker Box in a Home, Garage or Workshop
Circuit Breaker Type: Main Lug
Numberof Circuits: 16
Cable Size: 14 - 1 AWG AL/CU
Feed Type: Top/Bottom
Mounting Type: Flush
Enclosure Type: NEMA 1 Indoor
Panels are supplied with split insulated neutrals with an insulated cross strap
Separate ground bars must be used on non-service entrance panels
For non-service entrance (sub-panel) applications, the panel may be installed with the bonding strap not connected to the neutral
For service entrance applications, all that is required to bond the neutral is to loosen the bonding screw and the neutral screw directly beside it, insert the bonding strap into the neutral bar, and re-tighten both connections
The insulated/bondable single/split neutral panels have sufficient terminations for both ground and neutral conductors
