Elkay D233194 Dayton Stainless Steel Double Bowl Sink

SKU: 2125
Save 49% · Retail: $184.00

See buying options below:

Ships From Price Qty
Tennessee Warehouse
Ships in 1-3 Days
$106.40/ea 30
Georgia Warehouse
Ships in 1-3 Days
$138.60/ea 34
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Dayton D233194

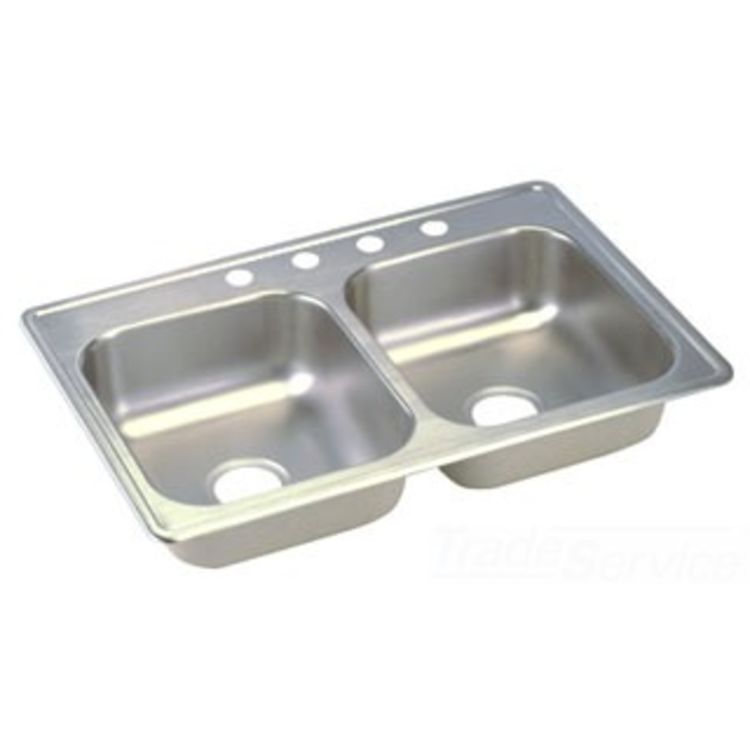

The Elkay D233194 Dayton Stainless Steel Double Bowl Sink. This nickel-bearing stainless steel sink is designed for a top mount installation. The Elkay D233194 is from the Dayton Collection, designed for efficiency and functionality. Overall dimensions are 33" in length and 19" in width while both bowls are 14" long, 14" wide and 6-7/16" deep. This sink has 4 faucet holes. The 3-1/2” drain openings are located at the center of each bowl (refer to the specification sheet). The exposed surfaces of this #22-gauge sink have been polished to a satin finish. The bottoms of the bowls are coated for sound deadening and to prevent condensation. The Elkay D233194 complies with ASME A112.19.3/ CSA B45.4 and is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the National Plumbing Code of Canada. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Product Collection: Dayton
Manufacturer: Elkay
Material: Stainless Steel
Type: Sink
Style: Self Rimming
Installation Type:
Number of Holes: 4 Hole
Material Gauge: 22 Gauge
Depth: 6" up to 7" Deep
Other Info: Drain Not Included
Shape: Rectangle
Use: General use
Room: Kitchen
Mpn # D233194
Shipping Dimensions 23.4" x 8.3" x 39.1"
Weight 13.00 lbs.
Shipping Dimensional Weight 43.22 lbs.

Product Features

  • This sink is compliant to ADA and ANSI/ICC A117.1 accessibility requirements when installed according to the requirements outlined in these standards.
  • Highest quality sink formed of #22 gauge stainless steel
  • Type 300 nickel bearing stainless steel.
  • Top mount.
  • Requires a minimum of 36 cabinet size
  • Bowl Depth: 6-7/16 inches
  • Drain opening: 3-1/2 inches
  • Exposed surfaces are polished to a Satin finish.
  • Undercoated on bottom of bowls.
  • Sink complies with ASME A112.19.3/ CSA B45.4
  • This sink is listed by IAPMO as meeting the applicable requirements of the Uniform Plumbing Code , International Plumbing Code , and National Plumbing Code of Canada.
