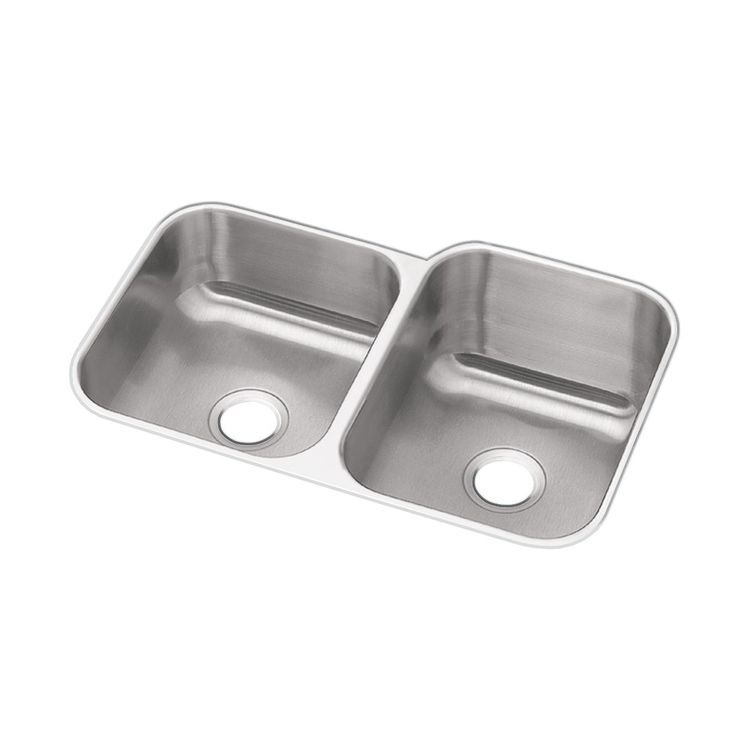

Elkay DXUH312010L Dayton Stainless Steel Double Bowl Sink

SKU: 28005

$184.56/ea
Save 55% · Retail: $407.00

See buying options below:



Ships From Price Qty
NewYork Warehouse
Ships in 1-3 Days
$202.78/ea 1
Iowa Warehouse
Ships in 1-3 Days
$256.35/ea 25
Order From Manufacturer
Available to Ship in 4-5 weeks
$184.56/ea

About the Dayton DXUH312010L

The Elkay DXUH312010L Dayton Stainless Steel Double Bowl Sink. This rectangular nickel-bearing stainless steel sink is designed for under mount installation. The Elkay DXUH312010L is from the Dayton Collection, designed for efficiency and functionality. Overall dimensions are 31-3/4" in length and 20-1/2" width. The left bowl is 14” long, 15-3/4” wide and 8” deep while the right bowl is 13-1/2" long, 18" wide and 10" deep. This sink has no faucet hole. The 3-1/2” drain openings are located at the center of each bowl (refer to the specification sheet). The exposed surfaces of this #18-gauge sink have been polished to a radiant satin finish. The bottoms of both bowls have sound-dampening pads and are fully sprayed with undercoating for sound deadening and to prevent condensation. The Elkay DXUH312010L complies with ASME A112.19.3/ CSA B45.4 and is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the National Plumbing Code of Canada. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Product Collection: Dayton
Manufacturer: Elkay
Material Gauge: 18 Gauge
Style: Two Bowls
Mount Type: Under Mount
Mpn # DXUH312010L
Shipping Dimensions 23.0" x 12.0" x 39.0"
Weight 25.00 lbs.
Shipping Dimensional Weight 61.03 lbs.

Product Features

  • Highest quality sink formed of #18 gauge stainless steel
  • Type 300 nickel bearing stainless steel.
  • Under mount.
  • Requires a minimum of 36 cabinet size
  • Bowl Depth: for the large bowl its 10 inches and the smaller bow is 8 inches.
  • Exposed surfaces are polished to a Radiant Satin finish.
  • This sink is designed to affix easily to the underside of any solid surface countertop.
  • Sound dampening pads with spray undercoating to dampen sound and reduce condensation.
  • Sink complies with ASME A112.19.3/ CSA B45.4
  • This sink is listed by IAPMO as meeting the applicable requirements of the Uniform Plumbing Code , International Plumbing Code , and National Plumbing Code of Canada.
  • QUIET: Sound-deadening materials minimize sound and vibration, while reducing condensation on the underside of the sink.
  • TWO BOWLS, DIFFERENT SIZES: Use bowls independently; wash dishes on one side while keeping other bowl available for smaller tasks.
  • STAINLESS STEEL: Premium, 18 gauge, Type 304 (18/10) Stainless Steel Construction.
  • Radiant Satin
  • Residential/Multi-Family Use
  • Proudly Made in the USA
  • Undermount
  • Undermount brackets sold separately
  • Recommended Installation Hardware: LKUCLIP8 (2 packages required)
  • Room Designation: Kitchen
  • Number of Bowls: 2
  • Drain Placement: Center Center
  • Gauge: 18
  • Minimum Cabinet Size: 36"
  • Compliance: ASME A112.19.3/CSA B45.4, BUY AMERICAN ACT
