Dunkirk ESC-6210S ESC IV Oil Steam Boiler w/ Beckett Burner, 294 MBH In, 247 MBH Out - ESC621031100403

SKU: 388906
$ 3,371.44 / ea
Cargo Shipping Only
Save 26% · Retail: $4,534.00

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 1-2 weeks

This product is NON-RETURNABLE. Please make sure you understand the item and the dimensions before ordering. By Clicking "Keep in Cart" below you are acknowledging that you understand that this product can not be returned.

Dunkirk ESC-6210S Esc Iv Oil Steam Boiler W/ Beckett Burner, 294 Mbh In, 247 Mbh Out - ESC621031100403

SKU: 388906
$3,371.44/ea


Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks
$3,371.44/ea

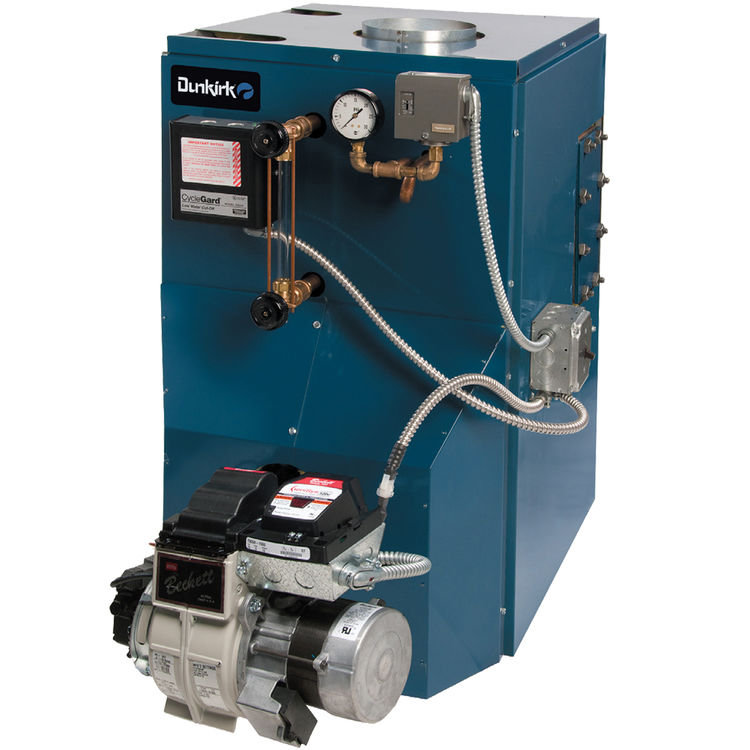

About the Dunkirk ESC-6210S ESC IV Oil Steam Boiler w/ Beckett Burner, 294 MBH In, 247 MBH Out - ESC621031100403

This heating solution offers advanced features and impressive specifications for your comfort!

The Dunkirk ESC621031100403 ESC-6210ST from the ESC Series IV residential oil-fired steam boiler is designed tankless for a powerful performance covering 771 square feet of steam. With an input rate of 294 MBH and a heating capacity of 247 MBH, it ensures a reliable hot water supply while excelling in energy efficiency with an 82.0% AFUE for a cost-effective and environmentally friendly alternative.

This ESC621031100403 boiler is suitable for installations with limited space. For convenience, we recommend using a 15-amp circuit with 120 volts AC, 60 hertz, and 1 phase to power the system. Furthermore, a dependable heat exchanger crafted from cast iron features robust cast iron push nipples, ensuring uniform expansion of both sections and nipples under heating conditions. Using similar materials, rather than cost-cutting gaskets, will guarantee a durable and watertight seal for the boiler over time. The patented protective heat shield baffle adds an extra layer of protection for the casting above the water line.

Maintenance is easy with the accessible cast-iron swing door and the large flueways for straightforward cleaning. Additionally, this boiler offers peace of mind to residential users with the 12-year limited warranty.

Dunkirk, a reputable home heating solutions provider since 1928, is dedicated to innovation, efficiency, and dependability. Seize the opportunity to elevate your hot water system with the Dunkirk ESC621031100403.

At PlumbersStock, we take pride in offering high-quality products with unmatched expertise to meet your heating and cooling needs, ensuring maximum comfort and efficiency for your home.

Manufacturer: Dunkirk
Product: Boiler
Modus Operandi: Fuel Oil
Color: Blue
Electrical Voltage: 120VAC, 60Hz
Pressure Rating: 145 PSI
Height: 35-3/4"
Width: 21-7/8"
Connection Size: 2"
Connection Type: NPT
Shape: Rectangle
Other Info: ASME Certified
  AHRI certified
Amperage: 15 amps
Material: Cast iron
Mpn # ESC621031100403
Weight 483.00 lbs.
  • Achieving Optimal Combustion Quality and Efficiency: This is facilitated by the Beckett burner feature integrated into the boiler.
  • Impressive Heating Capacity: The boiler attains this feature with input/output rates of 294 MBH and 247 MBH.
  • Crafted For Durability: Engineered for enduring strength, promoting reliable and steadfast boiler performance.
  • Suggested Dimensions For Supply And Return Tapping: Having two tapping points is advisable for this system, each with a 2-inch NPT (National Pipe Thread) size, designated for the inflow of fluid, likely water or steam. Additionally, a single tapping point with a specified size of 1-1/2 inches for the outflow or return of the water.
  • Efficient Operation With Up To 82.0% AFUE: Emphasizing cost-effectiveness and efficiency in its performance.
  • Adherence To Electrical Standards: This boiler operates at 120 volts AC, 60 hertz, 1 phase, with a suggested power consumption of 15 amps.
  • Supported By A 12-year Warranty: Ensuring the boiler's long-term reliability, providing peace of mind.
