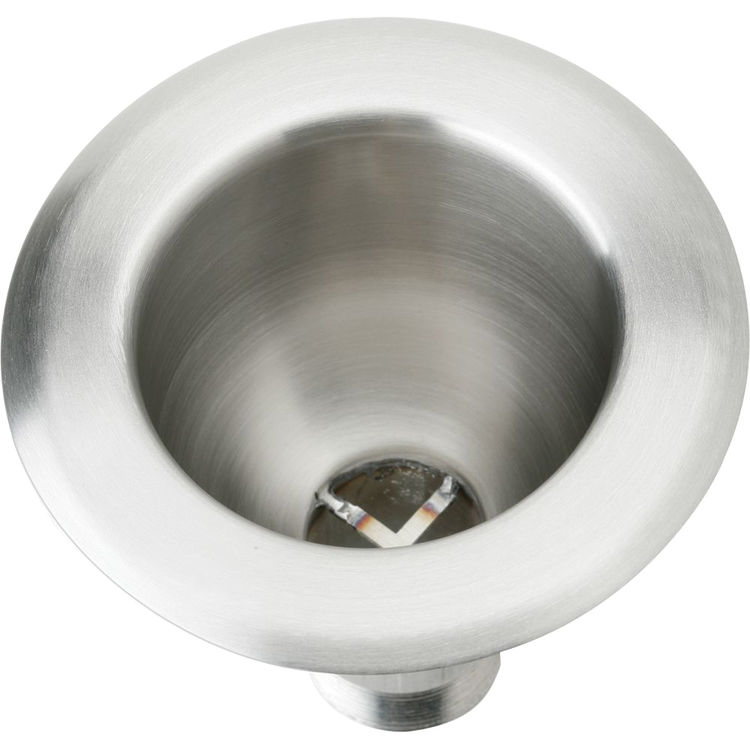

Elkay CUPR5 Stainless Steel Single Bowl Cup Sink

SKU: 74466
Minimum Quantity: 1

$368.15/ea
Save 42% · Retail: $637.00

See buying options below:



Ships From Price Qty
Iowa Warehouse
Ships in 1-3 Days
$481.45/ea 5
Order From Manufacturer
Available to Ship in 4-5 weeks
$368.15/ea

About the Elkay CUPR5

The Elkay CUPR5 Stainless Steel Single Bowl Cup Sink. This stainless steel sink is designed for a top mount installation. The Elkay CUPR5 Stainless Steel Sink is designed for efficiency and functionality. Overall diameter is 7-3/8" while the bowl’s diameter is 5" with a depth of 4". This sink has no faucet hole. The drain is a 1-1/2” I.P.S. x 2-1/4" long type-316 stainless steel nipple with a cross bar and it is located at the center of the bowl (refer to the specification sheet). The sink has a 1-3/16” flat rim with crimped edges. It shows a 6-3/4” cutout on the countertop when installed. This sink weighs 3 pounds, not including the parts needed for the installation. The exposed surfaces of this #16-gauge sink have been polished to a buffed satin finish. The CUPR5 Single Bowl Cup Sink complies with ASME A112.19.3/ CSA B45.4. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Product: Foodservice
Manufacturer: Elkay
Material: Stainless Steel
Type: Cup Sink
Size:
Product Collection:
Other Info: Drain Not Included
Shape: Round
Use: General use
Color:
Room: Kitchen
Material Gauge: 16 Gauge
Style: One Bowl
Mpn # CUPR5
Shipping Dimensions 11.6" x 11.5" x 9.3"
Weight 3.00 lbs.
Shipping Dimensional Weight 7.03 lbs.

Product Features

  • Sink is formed of #16 gauge stainless steel.
  • Type 316 stainless steel.
  • Topmount.
  • Bowl Depth: 4 inches.
  • Exposed surfaces have a buffed satin finish.
  • Drain Opening: 1-1/2 inches (38mm) I.P.S. x 2-1/4 inches (57mm) long type 316 stainless steel nipple with cross bar.
  • This sink complies with ASME A112.19.3/ CSA B45.4.
