Elkay DSE233223DFBG Dayton Stainless Steel Double Bowl Sink Package

SKU: 240858

Save 49% · Retail: $647.00

  Available to Ship in 1-2 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 1-2 weeks

About the Elkay DSE233223DFBG

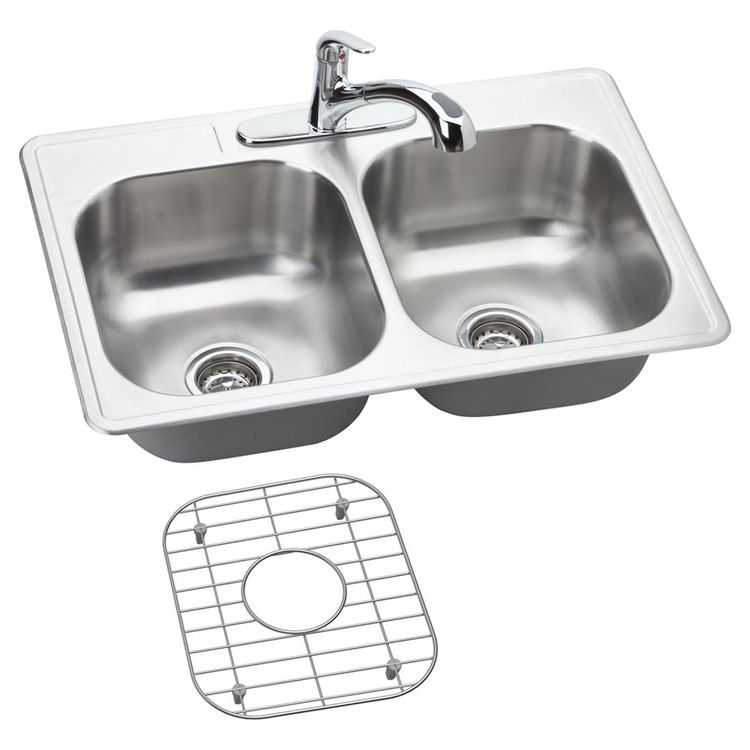

The Elkay DSE233223DFBG Dayton Stainless Steel Double Bowl Sink Package. This nickel-bearing stainless steel sink is designed for a top mount installation. The sink is furnished with a faucet, a bottom grid and two drains. The Elkay DSE233223DFBG Double Bowl Sink is from the Dayton Collection, designed for efficiency and functionality. Its overall dimensions are 33" in length with 22" in width and 8-1/16” in depth while both bowls are 14" long, 15-3/4" wide and 7-7/8" deep. This sink has 3 faucet holes. The 3-1/2” drain openings are located at the center of each bowl (refer to the specification sheet). The exposed surfaces of this #20-gauge sink have been polished to an elite satin finish. The bottoms and sides of the bowls are fully sprayed for sound deadening and to prevent condensation. The Elkay DSE233223DFBG Dayton Sink complies with ASME A112.19.3/ CSA B45.4 and is listed by the International Association of Plumbing and Mechanical Officials as meeting the requirements of the Uniform Plumbing Code and the National Plumbing Code of Canada. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Manufacturer: Elkay
Product: Sink Kit
Product Collection: Dayton
Other Info: Drain Included
Number of Holes: 3 Hole
Number of Handles: Single handle
Faucet Spray: Pull Out
Faucet Handle Type: Lever Handle
Material Gauge: 20 Gauge
Color: Elite Satin
ADA: Yes
Kitchen Faucet Type: Kitchen Faucet
Mount Type: Drop in
Number of Bowls: Two Bowls
Drain Location: Center
Size: 33” x 22”
Depth: 8-1/16"
Material: Stainless Steel
Mpn # DSE233223DFBG
Weight 31.30 lbs.

Product Features

  • Highest quality sink formed of #20 gauge stainless steel
  • Type 300 nickel bearing stainless steel.
  • Top mount.
  • Requires a minimum of 36 cabinet size
  • Bowl Depth: 7-7/8 inches.
  • Drain opening: 3-1/2 inches.
  • Exposed surfaces are polished to an Elite Satin finish.
  • Fully sprayed sides and bottom to dampen sound and reduce condensation.
  • This sink package comes furnished with a faucet LK5000CR, a bottom grid GBG1415SS and 2 drains which can be ordered as D1125 or LK35.
  • The faucet is chrome finished, single-lever kitchen faucet with pull-down spray and braided stainless steel supply lines.
  • The faucet complies with ADA, ANSI/NSF61, ASME A112.18.1/CSA B125.1, cUPC and CA AB1953
  • Faucet flow rate is 1.5 GPM/5.7 L/min at 60 P.S.I.G.
  • The bottom grid is nickel-bearing, stainless steel with a bright finish and dishwasher safe.
  • The drain features a stainless steel body and strainer.
  • Sink complies with ASME A112.19.3/ CSA B45.4
  • This sink is listed by IAPMO as meeting the applicable requirements of the Uniform Plumbing Code, International Plumbing Code, and National Plumbing Code of Canada.
