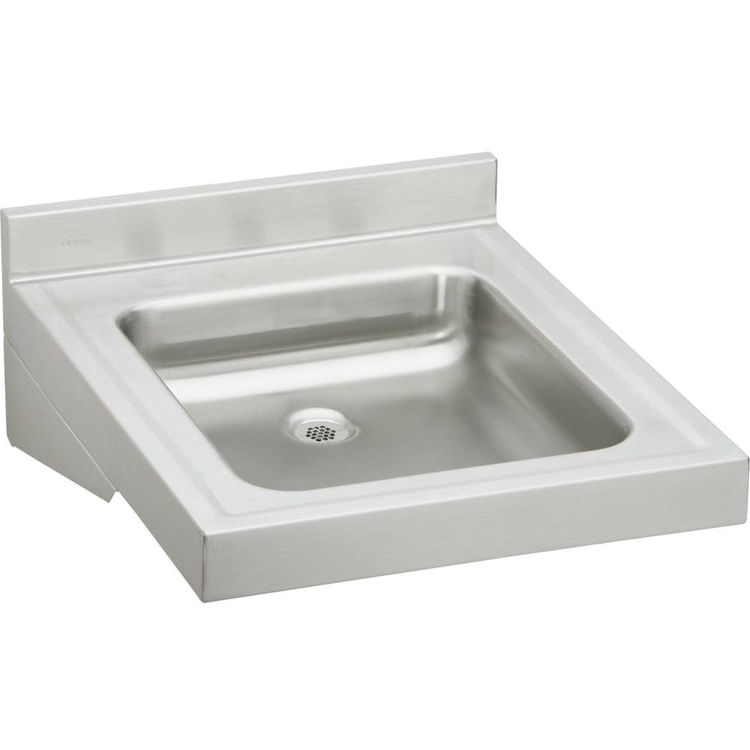

Elkay WCL1923OSD0 Wheelchair Lavatory Stainless Steel Single Bowl Sink Package

SKU: 64428

$756.53/ea
Save 40% · Retail: $1,260.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$756.53/ea

About the Elkay WCL1923OSD0

The Elkay WCL1923OSD0 Wheelchair Lavatory Stainless Steel Single Bowl Sink Package. This sink is designed for a wall mount installation. The sink is furnished with the LKAD174 drain. The Elkay WCL1923OSD0 Single Bowl Sink is designed for efficiency and functionality. The overall dimensions of the sink are 19" in length and 23" in width while the bowl is 13-1/2" long, 16" wide and 4" deep. This sink has no faucet hole. The 1-5/8” drain opening is located at the rear center of the bowl (refer to the specification sheet). The exposed surfaces of this #18-gauge sink have been polished to a uniform satin luster finish. The underside of the sink is fully coated for sound-deadening and to reduce condensation. The Elkay WCL1923OSD0 Wheelchair Lavatory Sink complies with ADA and ANSI/ICC A117.1 accessibility requirements when installed according to the requirements outlined in these standards. Made in the USA and covered by a Limited Lifetime Warranty by Elkay, a trusted leader in the industry.

Product Details

Manufacturer: Elkay
Other Info: Drain Included
Shape: Rectangle
Use: General use
Type: Sink
Material: Stainless Steel
Product:
Size:
Color:
ADA:
Room: Bathroom
Material Gauge: 18 Gauge
Style: Wall Mount
Mount Type:
Mpn # WCL1923OSD0
Weight 16.79 lbs.

Product Features

  • Highest quality sink formed of #18 gauge stainless steel
  • Type 304 nickel bearing stainless steel.
  • Stainless-steel wheelchair lavatory with a 5/32 inch (4mm) raised rim.
  • Wall mount.
  • Includes the drain LKAD174.
  • Bowl Depth: 4 inches.
  • Exposed surfaces are hand blended to a uniform satin luster finish.
  • Unexposed underside is fully undercoated to reduce condensation and dampen sound.
  • Furnished with a separate wall hanger, integral stainless steel support brackets and grid strainer with an elbow and offset tailpiece.
  • LKAD174 is a chrome-plated, perforated strainer grid with a cast-brass elbow and 1-1/4 inches offset tailpiece.
  • Rear centered drain outlet with drain opening size 1-5/8 inches (41mm).
  • The compartment has 1-3/4 inches (44mm) radius vertical and horizontal coved corners.
  • With 2-1/2 inches (64mm) apron on the front and both sides.
  • This sink is compliant to the ADA and ANSI/ICC A117.1 accessibility requirements when installed according to the requirements outlined in these standards.
