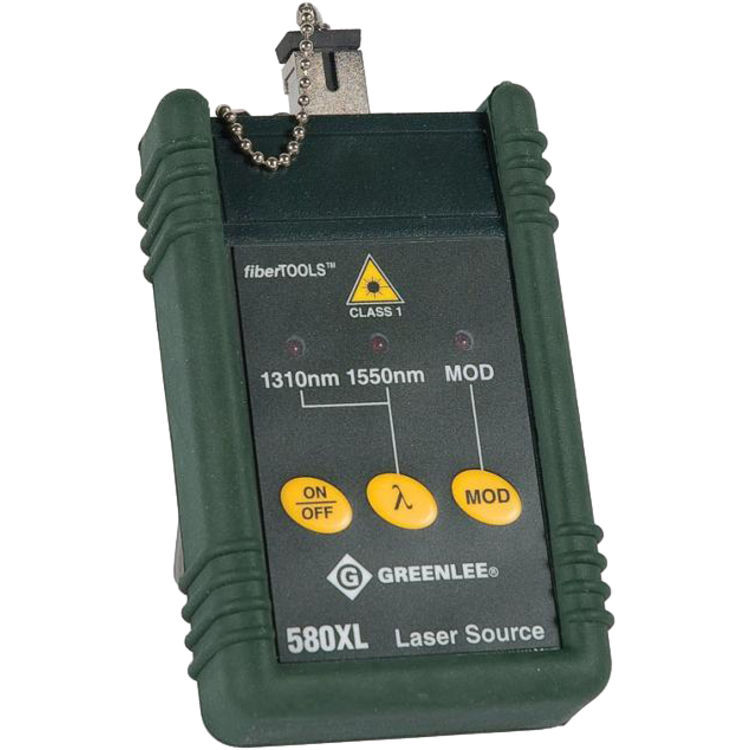

Greenlee 580XL-SC Laser Source (1310/1550nm)

SKU: 273665
Minimum Quantity: 1

$1,110.89/ea Free Shipping!
Save 6% · Retail: $1,184.95

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$1,110.89/ea

About the Greenlee 580XL-SC

The Greenlee 580XL-SC Laser Source (1310/1550nm) is part of Greenlee's premium collection of tools and accessories. This laser source is designed for 1310/1550nm wavelengths, is easy to use, and has a stable, calibrated output. It has a fixed connect interface for SC, a long 80-hour battery life, and a rugged splash-proof design.

Product Details

Product: Specialty Tools
Manufacturer: Greenlee
Use: Testing
Type: Electric
Mpn # 580XL-SC
Weight 28.50 lbs.

Product Features

  • 1310/1550nm wavelengths
  • CDRH Laser Class : Class 1
  • Connector interface : FC, SC Or ST
  • Dimensions : 2.800 IN (7.200 CM) X 5.600 IN (14.200 CM) X 1.400 IN (3.500 CM)
  • Humidity : 0 To 95 PCT Non-Condensing
  • Max Spectral Width : Lesser Than 5 NMTR
  • Measuring Range : 1280 NMTR To 1340 NMTR, 1520 NMTR To 1580 NMTR
  • Modulation Frequency : 270 KHZ, 1 KHZ And 2 KHZ
  • Power Supply : Two AA Size 1.5 V Batteries
  • Stability : Plus Or Minus 0.05 DB For 1 HR
  • Standard : EN61010 EN50081-1: 1992 EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3,-4, CDRH Laser Class 1
  • Stable calibrated output
  • Storage/Operating Temperature : -15 To 55 DEG C-35 To 70 DEG C
  • Typical Power Output 9125 : -8 DBM Minimum, -7 DBM Typical
  • Wavelength : 1310 NMTR Center, 1550 NMTR Center
  • Weight : 241.000 GM (8.500 OZ)
  • Easy to use
  • Continuous wave and modulated output.
  • Fixed connect interface FC, SC or ST
  • Long battery life - approx. 80 hours
  • User selectable auto shut-off
  • Rugged and splash-proof
  • Economically priced
