Greenlee 6001-22 Greenlee 6001-22 Cable Puller Assembly (220V)

Greenlee 6001-22 Cable Puller Assembly (220V)

SKU: 273673
$ 11,291.20 / ea
 Free Shipping!
Save 12% · Retail: $12,887.70

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks
$11,291.20/ea ∞

About the Greenlee 6001-22 Cable Puller Assembly (220V)

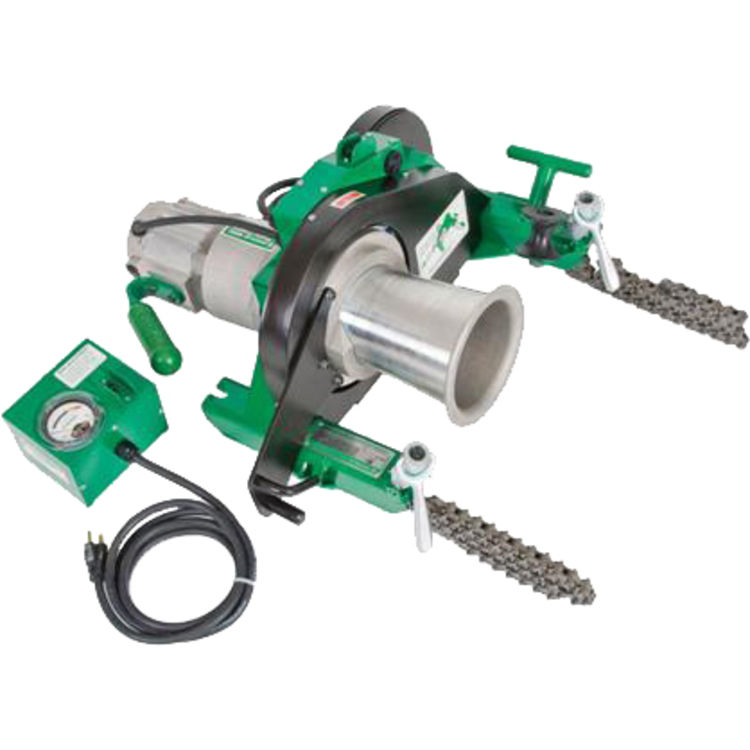

The Greenlee 6001-22 Cable Puller Assembly (220V) is part of Greenlee's premium collection of tools and accessories. This cable puller assembly features a unique floor mounting attachment for quick set up, leaf-type mounting chains that wont twist when tightening, and a right angle sheave that allows you to stand out of the direct line of force.

Product: Parts and Accessories
Manufacturer: Greenlee
Mpn # 6001-22
Weight 117.00 lbs.
  • Pull up to 6,500 lbs. (28.9kN) with less than 27 lbs. (120 N) of operator effort
  • Accessory : 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN X 300 FT (19.100 MM X 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN X 600 FT (19.100 MM X 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN X 1,200 FT (19.100 MM X 365.0
  • Drive Motor : 1-1/2 HP, 220 VAC, 50 HZ
  • Includes : Force Gauge And Vise Chains
  • Pulling Force : 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous
  • Pulling Rope : 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000LB (115.600 KN)
  • Pulling Speeds : 16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB
  • Sub Brand : Super Tugger
  • Weight : 108.000 LB (49.000 KG)
  • Unique floor mounting attachment for quick, reliable setup
  • Leaf-type mounting chains won't twist when tightening
  • Heat-treated steel serrated gripper feet for secure mounting to conduit
  • Force Gauge included to constantly monitor the pull
  • Right-angle sheave allows the operator to stand out of the direct line of force
  • Audio alarm high force warning and circuit breaker shut off at maximum force for added safety
  • Tapered capstan and patented rope guidance system for better control of therope when feeding onto the capstan
  • Patented
