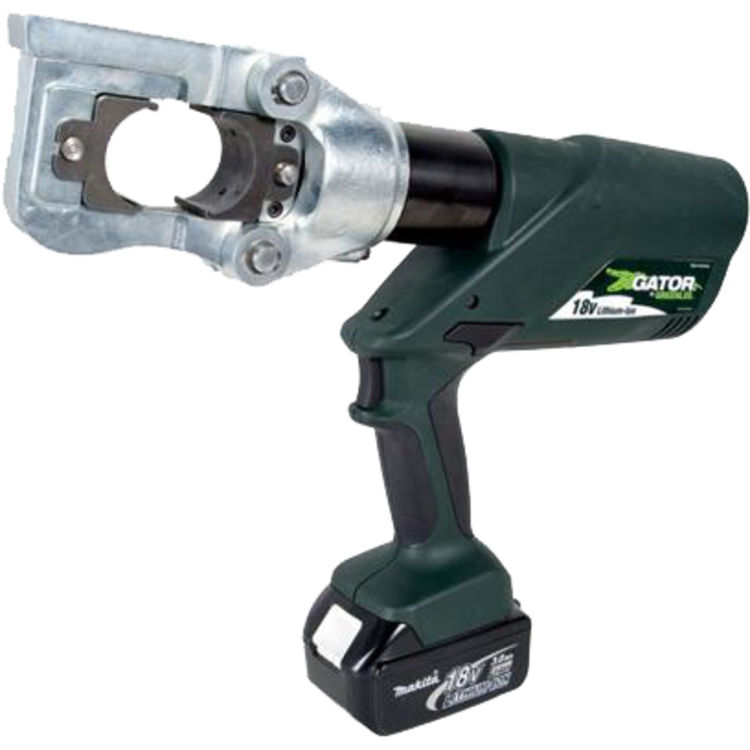

Greenlee E12CCXL230 Battery-Powered Gator Crimp Tool (12-ton)(230V AC Adapter)

SKU: 274458
$4,195.26/ea Free Shipping!
Save 22% · Retail: $5,369.10

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Greenlee E12CCXL230

The Greenlee E12CCXL230 Battery-Powered Gator Crimp Tool (12-ton)(230V AC Adapter) is part of Greenlee's premium collection of tools and accessories. This crimper features Greenlee's intelligent crimping system technology that includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. It comes with a state-of-the-art 18v lithium ion battery, a retraction stop repeat that allows you to partially retract the ram and repeat the retraction for subsequent crimps, an LED indication light for battery charge and tool maintenance status, a 2-stage hydraulic system, a single trigger control for all functions, a crimping head that rotates a full 350-degrees, an automatic retraction when the crimping/cutting cycle is complete, overmolded tacky grip areas, an LED work light, and a smart charger that controls the current, voltage, and battery temperature to maximize battery life.

Product Details

Manufacturer: Greenlee
Type: Crimping Tool
Style: Hydraulic
Mpn # E12CCXL230
Weight 20.00 lbs.

Product Features

  • Intelligent Crimping System Technology Includes A Pressure Sensor That Monitors The Crimping Force Of Each Crimp And Provides The Operator A Visual And Audible Alert If The Force Is Below Specifications
  • Overmolded Tacky Grip Areas Make Gripping The Tool Easier And More Comfortable
  • Led Work Light Illuminates Dark Work Areas12~ Greenlee Battery-Powered Crimping Tools Now Use Bio-Degradable Oil
  • Smart Chargers Control The Charging Current, Charging Voltage And Battery TemperatureTo Maximize Battery Life Available With 120 V, 12 V Or 230 V Battery Charger Or With 120 V Or 230 V Corded Adapter In Place Of Batteries And Charger Use Optional CCX Blades And Adapters
  • Reads ground resistance down to 0.10
  • Accessory : 12274 UPC 12274 Carrying Strap
  • Battery : 18 V, 3.0 AMP-HR Lithium-Ion
  • Battery Charge Time : 1 HR
  • Crimping Force : 24000.000 LB (107.000 KN)
  • Estimated Cycles per Charge : 90
  • Length : 16-1/2 IN (419.000 MM)
  • State Of The Art 18 V Lithium Ion (Li-Ion) Battery Provides 70 PCT More Cycles Per Charge And Faster Cycle Times
  • Replacement Part : 52176 UPC 52176 18 V, 3.0 Ah,Li-ion Battery, 10122 UPC 10122 Carrying Case for E12CCXL &ECCXL, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 VCharger
  • Rotation : 350 DEG
  • Standard : C/US UL Listed
  • Sub Brand : Gator
  • Type : Battery Powered
  • Weight : 15.000 LB (6.800 KG)
  • Retraction Stop Repeat (RSR) Allows The Operator To Partially Retract The Ram And ThenThe Tool Repeats The Retraction For Subsequent Crimps
  • LED Light Provides The Operator With The Battery Charge And Tool Maintenance Status
  • Two-Stage Hydraulic SystemProvides Fast Advance And Power Speeds, Saving Time
  • Forward Handle Position Improves Tool Balance
  • One Trigger Controls All Tool Functions
  • Crimping Head Rotates 350 DEG
  • Tools Automatically Retract When The Crimping Or Cutting Cycle Is Complete
