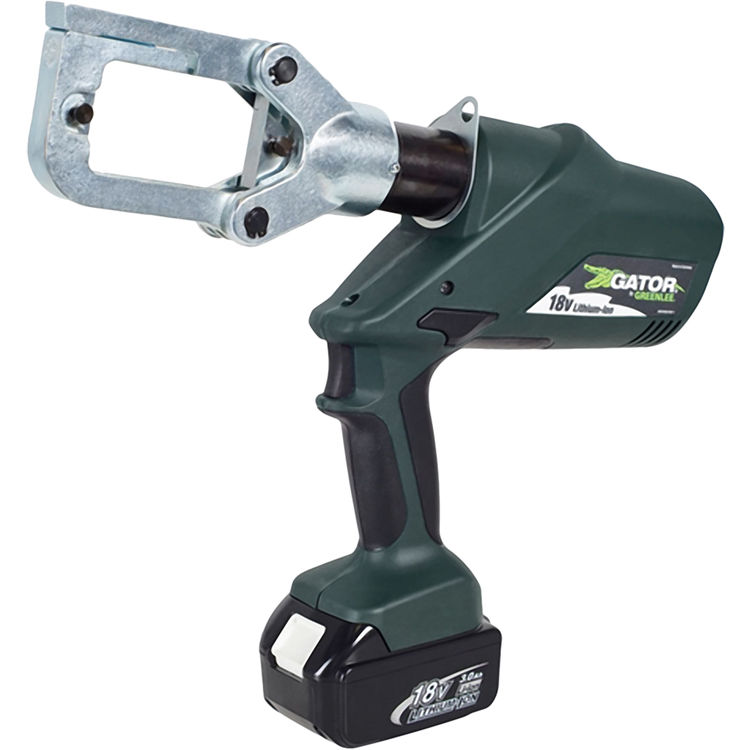

Greenlee ECCXL230 Battery-Powered Gator-Pro Crimp Tool (6-Ton)(230V AC Adapter)

SKU: 274465
$2,744.51/ea Free Shipping!
Save 24% · Retail: $3,606.11

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Greenlee ECCXL230

The Greenlee ECCXL230 Battery-Powered Gator-Pro Crimp Tool (6-Ton)(230V AC Adapter) is part of Greenlee's premium collection of tools and accessories. This crimper features Greenlee's intelligent crimping system technology that includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications. It comes with a state-of-the-art 18v lithium ion battery, a retraction stop repeat that allows you to partially retract the ram and repeat the retraction for subsequent crimps, an LED indication light for battery charge and tool maintenance status, a 2-stage hydraulic system, a single trigger control for all functions, a crimping head that rotates a full 350-degrees, an automatic retraction when the crimping/cutting cycle is complete, overmolded tacky grip areas, an LED work light, and a smart charger that controls the current, voltage, and battery temperature to maximize battery life.

Product Details

Manufacturer: Greenlee
Type: Crimping Tool
Style: Hydraulic
Mpn # ECCXL230
Weight 22.99 lbs.

Product Features

  • Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visualand audible alert if the force is below specifications
  • Accessory : 12274 UPC 12274 Carrying Strap
  • Battery : 18 V, 3.0 AMP-HR Lithium-Ion
  • Battery Charge Time : 1 HR
  • Crimping Force : 12000.000 LB (53.000 KN)
  • Estimated Cycles per Charge : 300
  • Overall Length : 16-1/2 IN (375.000 MM)
  • Replacement Part : 52176 UPC 52176 18 V, 3.0 Ah,Li-ion Battery, 10122 UPC 10122 Carrying Case for E12CCXL &ECCXL, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 VCharger
  • Rotation : 350 DEG
  • Standard : C/US UL Listed
  • Sub Brand : Gator
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Type : Battery Powered
  • Weight : 14.000 LB (6.300 KG)
  • Retraction Stop Repeat (RSR) allows the operator to partially retract the ram and thenthe tool repeats the retraction for subsequent crimps
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic systemprovides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • After completing-connection, the top of the head easily swivels 90 degrees and can be lifted from the tool to remove the connector
  • Tools automatically retract when the crimping or cuttingcycle is complete10~ Overmolded tacky grip areas make gripping the tool easier and more comfortable11~ LED work light illuminates dark work areas12~ Greenlee battery-powered crimping tools now use bio-degradable oil13~ Smart chargers control the charging current, charging voltage and battery temperatureto maximize battery life14~ Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger15~ Use optional CCX blades and adapters16~ U.S. Patent #6,206,663, #6,532,79017~ 6-Ton tools: When used with Greenlee KC22 and KA22 diesin combination with Anderson,Blackburn, FCI Burndy, ILSCO,Panduit, Penn-Union and Thomas & Betts color-coded connectors, connections up to 600 kcmil (copper) and 350 kcmil (aluminum) are UL and cUL classified. These tools also accept Greenlee, Burndy, Kearney, Blackburn, Panduit and Thomas & Betts dies used for 6-ton tools. They can drive knockout punchesup through 2 IN diameter
