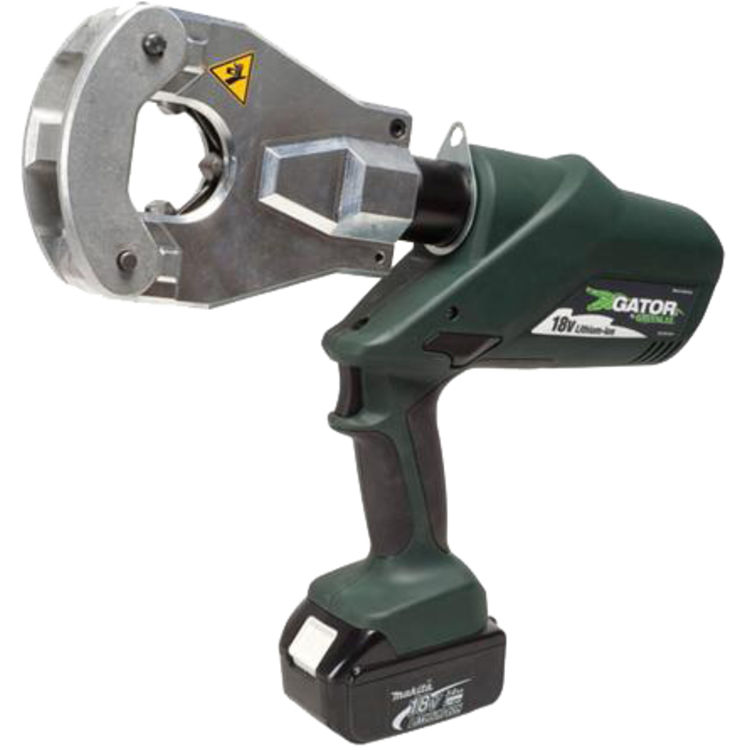

Greenlee EK06FTL12 Flip-Top Dieless Battery-Powered Crimp Tool (12V Charger)

SKU: 274477
Minimum Quantity: 1

$4,063.64/ea Free Shipping!
Save 21% · Retail: $5,133.18

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$4,063.64/ea

About the Greenlee EK06FTL12

The Greenlee EK06FTL12 Flip-Top Dieless Battery-Powered Crimp Tool (12V Charger) is part of Greenlee's premium collection of tools and accessories. This dieless crimping tool does not require interchangeable crimping dies, and features an intellegent crimping system technology that includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual/audible alert if the force is below specifications. It includes a state-of-the-art 18v lithium ion battery, an automatic retraction stop, an LED indication light for battery charge and tool maintenance status, a 2-stage hydraulic system, a single trigger control for all functions, a crimping head that rotates a full 350-degrees, an automatic retraction when the crimping cycle is complete, overmodled tacky grip areas, an LED worklight, and a smart charger that controls the current, voltage, and battery temperature.

Product Details

Product:
Manufacturer: Greenlee
Type: Crimping Tool
Style: Hydraulic
Mpn # EK06FTL12
Weight 24.10 lbs.

Product Features

  • Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visualand audible alert if the force is below specifications
  • Accessory : 52178 UPC 52178 120 V Charger
  • Battery : 18 V, 3.0 AMP-HR Lithium-Ion
  • Battery Charge Time : 1 HR
  • Crimping Capacity : 6 AWG - 750 KCMIL Copper Lugs, 6 AWG - 750 KCMIL Copper Splices, 6 AWG - 750 KCMIL Aluminum Lugs, 6 AWG - 750 KCMIL Aluminum Splices
  • Crimping Force : 12400.000 LB (55.000 KN)
  • Overall Length : 14-7/8 IN (378.000 MM)
  • Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger
  • Standard : C/US UL Listed
  • Sub Brand : Gator
  • Type : Battery Powered, Flip Top Head, Quad Point Dieless
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Weight : 11.000 LB (5.000 KG)
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic systemprovides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • U.S. Patent #6,206,663, #6,532,790, When used with Greenlee KC12 and KA12 dies in combination with Anderson Blackburn FCI Burndy ILSCO Panduit Penn-Union and Thomas& Betts color-coded connectors, crimps on connections up to750 kcmil are UL and cUL classified. The tools also accept all industry-type dies. These tools drive knockout punches through 5-5/8 diameter.
  • Tools automatically retract when the crimping cycle is complete10~ Overmolded tacky grip areas make gripping the tool easier and morecomfortable11~ LED work light illuminates dark work areas12~ Greenlee battery-powered crimping tools now use bio-degradable oil13~ Smart chargers control the charging current, charging voltage and battery temperatureto maximize battery life14~ Utilizes four indentors to make the crimp15~ Flip-top style uses a pull pin to open head for easy removal from the connector16~ U.S. Patents #6,206,663 and #6,065,32617~ Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
