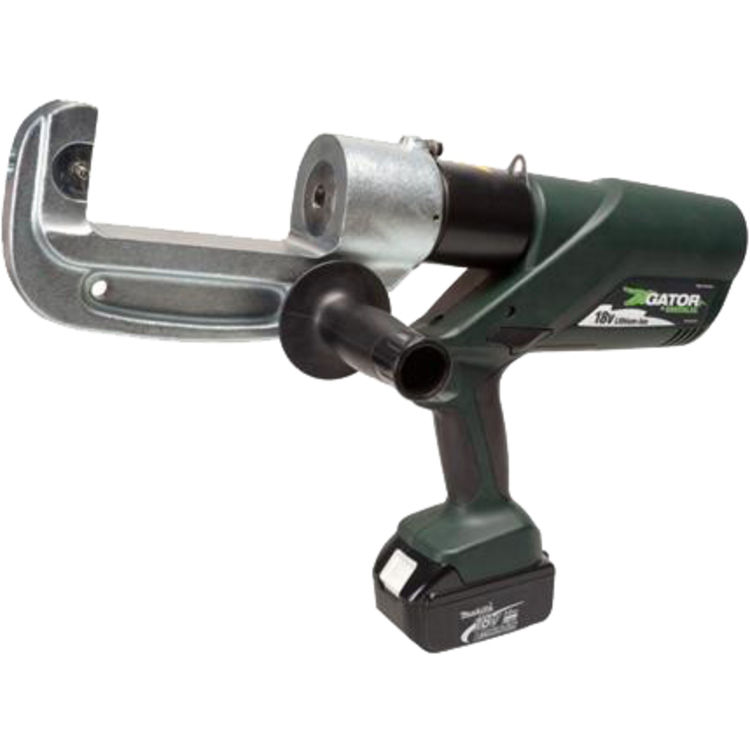

Greenlee EK1550L22 Battery-Powered Crimp Tool (15-ton)(230V Charger)

SKU: 274513
Minimum Quantity: 1

$4,522.54/ea Free Shipping!
Save 21% · Retail: $5,697.81

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$4,522.54/ea

About the Greenlee EK1550L22

The Greenlee EK1550L22 Battery-Powered Crimp Tool (15-ton)(230V Charger) is part of Greenlee's premium collection of tools and accessories. This battery-powered crimping tool features an intellegent crimping system technology that includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual/audible alert if the force is below specifications. It has a state-of-the-art 18v lithium ion battery, an automatic retraction stop that retracts the ram just enough to get ready for the next cycle time, an included assist handle for better balance, an LED indication light for battery charge and tool maintenance status, a 2-stage hydraulic system, a single trigger control for all functions, a crimping head that rotates a full 350-degrees, an automatic retraction when the crimping/cutting cycle is complete, overmolded tacky grip areas, an LED worklight, and a smart charger that controls the current, voltage, and battery temperature to maximize battery life.

Product Details

Product:
Manufacturer: Greenlee
Type: Crimping Tool
Style: Hydraulic
Mpn # EK1550L22
Weight 32.58 lbs.

Product Features

  • Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visualand audible alert if the force is below specifications
  • Overmolded tacky grip areas make gripping the tool easier and morecomfortable
  • LED work light illuminates dark work areas12~ Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control the charging current, charging voltage and battery temperatureto maximize battery life
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
  • Interchangeable adapters permit the use of a wide variety of crimping dies
  • Accepts Kearney PH4/P14 dies without adapter
  • Assist handle is includedto provide better balance forthe tool
  • Accessory : 48820 UPC 48820 Die Adapters - Burndy P dies (Y46), Ilsco ILD-P Dies, 48788 UPC 48788 DieAdapters - T&B 15600 Dies, Blackburn 15600 dies, 48802 UPC 48802 Die Adapters - Greenlee 12-Ton dies, Burndy 12-Ton dies, Ilsco ILD dies, T&B 15500 dies, Blackburn 1
  • Battery : 18 V, 3.0 AMP-HR Lithium-Ion
  • Battery Charge Time : 1 HR
  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Crimping Capacity : 8 AWG - 1000 KCMIL (MCM) Color Coded Copper And Aluminum Lugs And Splices
  • Crimping Force : 30000.000 LB (134.000 KN)
  • Estimated Cycles per Charge : 50
  • Height : 15.000 IN (381.000 MM)
  • Overall Length : 19-5/8 IN (498.000 MM)
  • Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR, Li-Ion Battery, 10118 UPC 10118 Carrying Case, 52178 UPC52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger
  • Standard : C/US UL Listed
  • Sub Brand : Gator
  • Type : Battery Powered
  • Weight : 19.000 LB (8.500 KG)
  • Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
  • LED light provides the operator with the battery charge and tool maintenance status
  • Two-stage hydraulic systemprovides fast advance and power speeds, saving time
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • Crimping head rotates 350O
  • Tools automatically retract when the crimping cycle is complete
