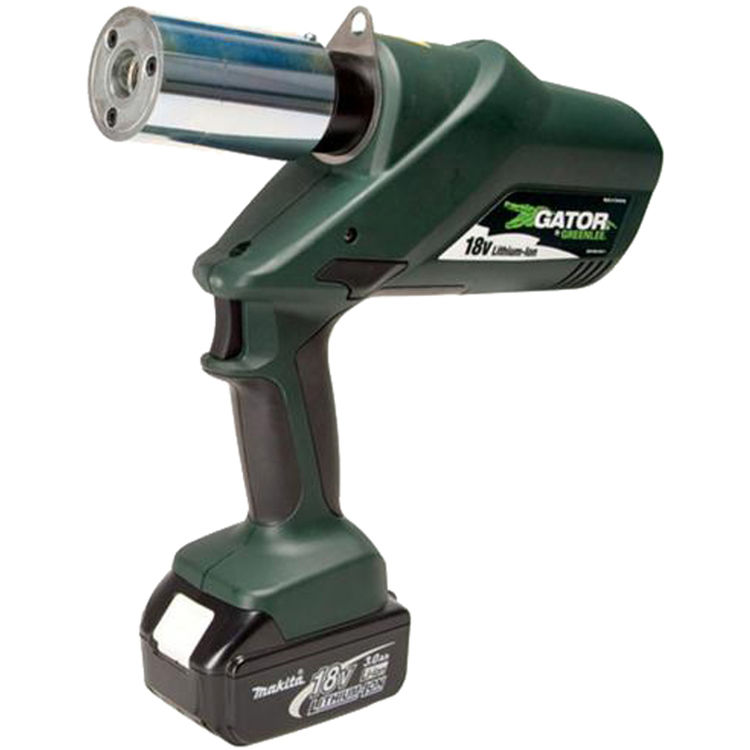

Greenlee LS60LA11 Battery-Powered Punch Driver (120V Charger)

SKU: 276024
$3,354.57/ea Free Shipping!
Save 18% · Retail: $4,104.08

   Available to Ship in 2-3 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Greenlee LS60LA11

The Greenlee LS60LA11 Battery-Powered Punch Driver (120V Charger) is part of Greenlee's premium collection of tools and accessories. This battery-powered driver comes with a state-of-the-art 18v lithium ion battery, an LED indication light for battery charge and tool maintenance status, a single trigger control for all functions, an automatic stop at the end of the punching cycle, overmolded tacky grip areas, an LED work light, and a smart charger that controls the charging current, voltage, and battery temperature to maximize battery life.

Product Details

Manufacturer: Greenlee
Type: Locks
Style: Battery
Mpn # LS60LA11
Weight 22.93 lbs.

Product Features

  • State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
  • Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
  • Battery : 18 V, 3.0 AMP-HR Lithium-Ion
  • Battery Charge Time : 1 HR
  • Charger Voltage : 120 V
  • Height : 12.500 IN (318.000 MM)
  • Includes : "1614SS UPC 30043 Draw Stud 3/8"" x 2-13/16"", 31872 UPC 31872 Draw Stud 3/4"" x 4-1/8"",1924AA UPC 03248 Spacer-Short, 33967 UPC 33967 Stud Adapter3/8"", 01686 UPC 01686 Metal Case, MKLS60 UPC 05956 Case for LS60 "
  • Maximum Punch Force : 6.7 TON (60 KN)
  • Maximum Ram Travel : 0.870 IN (22.000 MM)
  • Maximum Rectangular Punch Size : 1.378 X 2.559 IN (35.000 X 65.000 MM)
  • Maximum Round Punch Size : 2.420 IN Diameter (61.500 MM)
  • LED light provides the operator with the battery charge and toolmaintenance status
  • Maximum Square Punch Size : 2-11/16 X 2-11/16 IN (68.000 X 68.000 MM)
  • Overall Length Ram Retracted : 11.500 IN (292.000 MM)
  • Type : Battery Powered, Knockout Punch
  • Weight : 8.800 LB (4.000 KG)
  • Forward handle position improves tool balance
  • One trigger controls all tool functions
  • Punching cycle stops automatically when hole is completeto prevent damage to punch
  • Overmolded tacky grip areas make gripping the tool easier and more comfortable
  • LED work light illuminatesdark work areas
  • Greenlee battery-powered crimping tools now use bio-degradable oil
  • Smart chargers control thecharging current, charging voltage and battery temperature to maximize battery life
