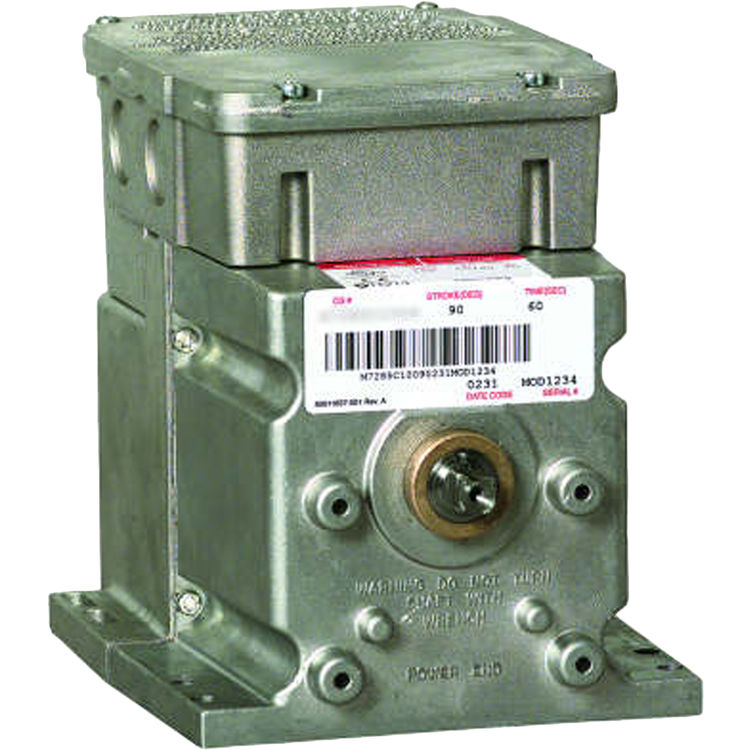

Honeywell M4185C1007/U 2-Position Spring-Return Modutrol IV Motors

SKU: 374280

$390.77/ea
Save 61% · Retail: $992.89

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$390.77/ea

About the Honeywell M4185C1007

Honeywell M4185C1007/U 2-Position Spring Return Modutrol IV Motors. 60 lb-in Auxiliary Switches for Series 41 and Series 81 Modutrol IV Motors are 2-Position spring-return Motors. They are used to operate dampers or Valves" applications where it is necessary or desirable to have the controlled element return to the starting Position" the event of power failure or interruption. (line- and low-Voltage per motor control)

Product Details

Manufacturer: Honeywell
Faucet Part Feature: Motor
Style: Parts
Type:
Mpn # M4185C1007
Weight 0.55 lbs.

Product Features

  • Electric
  • 120V
  • Driving-- 20 VA
  • EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
  • -40 F to +150 F
  • -40 C to +60 C
  • 2
  • AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
  • Adjustable; 90 to 160 degrees, Asymmetrical
  • 0.375 in. Square
  • Two position, SPST
  • 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
  • Spring Return
  • 60 lb-in.
  • 6.8 Nm
  • Yes
  • Clockwise (as viewed from power end) (normally closed)
  • 90 degrees
  • 30-60 sec
  • No
  • 10 mm Square
  • Dual-ended shaft
  • 164 mm high x 140 mm wide x 222 mm deep
  • Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
  • 50004263-003
  • Transformer
  • 9.5 lb
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX for USA and Canada
  • Quick-connect terminals
