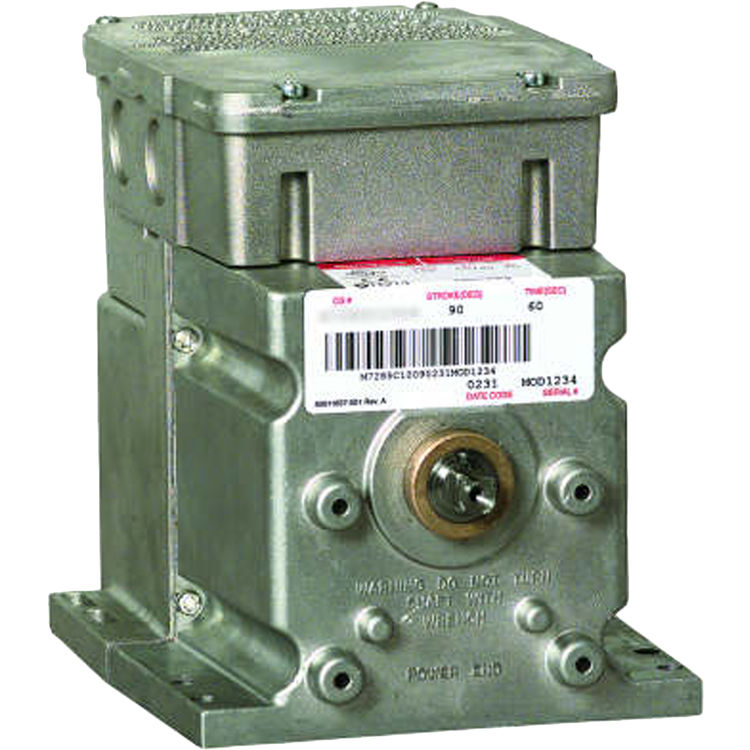

Honeywell M7285A1003/U 120V Spring Return Actuator

SKU: 374330

Save 59% · Retail: $1,727.05

In Stock and Ready to Ship

Ships From Price Qty
Long Island Warehouse
Ships in 1-4 Days
$715.90/ea 2
Massachusetts Warehouse
Ships in 1-4 Days
$715.90/ea 5
Illinois Warehouse
Ships in 4-6 Days
$715.90/ea 10
Order From Manufacturer
Available to Ship in 3-4 weeks

About the Honeywell M7285A1003

Honeywell M7285A1003/U 120V Spring Return Actuator. The Series 72 Modutrol IV Motors are non-spring return motors used to control dampers and Valves. These motors accept a Voltage signal from an electronic controller to Position a damper or Valve at any point between open and closed.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # M7285A1003
Weight 6.15 lbs.

Product Features

  • Electric
  • 120V
  • Driving-- 20 VA
  • EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
  • -40 F to +150 F
  • -40 C to +60 C
  • 0
  • AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
  • Adjustable; 90 to 160 degrees, Asymmetrical
  • 0.375 in. Square
  • Modulating, 4-20 mA
  • 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
  • Spring Return
  • 60 lb-in.
  • 6.8 Nm
  • Yes
  • Clockwise (as viewed from power end) (normally closed)
  • 90 degrees
  • 30-60 sec
  • No
  • 10 mm Square
  • Dual-ended shaft
  • 164 mm high x 140 mm wide x 222 mm deep
  • Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
  • 50004263-002
  • Transformer and Screw Terminal Adapter
  • 9.5 lb
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX for USA and Canada
  • Screw terminals
