Honeywell M7410F1000 Honeywell M7410F1000 Modulating Globe Valve Actuator

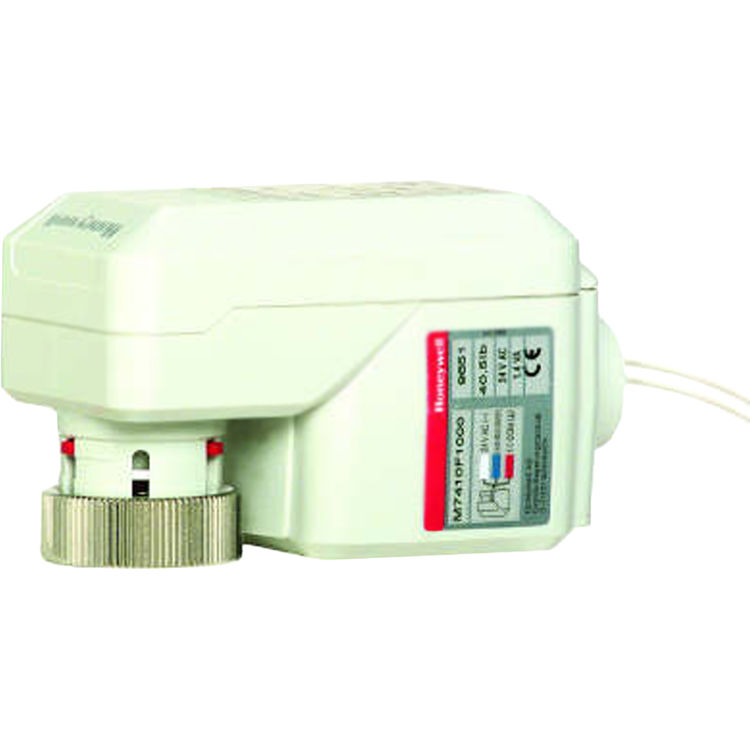

Honeywell M7410F1000 Modulating Globe Valve Actuator

SKU: 374341

This product is not currently available for purchase.

About the Honeywell M7410F1000 Modulating Globe Valve Actuator

Honeywell M7410F1000 Modulating Globe Valve Actuator. Cartridge Globe Valve Actuators are small electric Actuators for individual room control that provide Floating or modulating control of V5852, V5862 Two-Way or V5853, V5863 Three-Way Valves.

Product: Globe
  Actuator
Manufacturer: Honeywell
Mpn # M7410F1000
Weight 1.05 lbs.
  • HVAC
  • Threads onto V58XX valve bonnet
  • 50 Hz; 60 Hz
  • Flammability Rating UL94V-5V
  • Plenum-rated cable
  • 5 to 95% RH
  • 24 Vac +10%, -30%
  • Driving-- 1.4 VA
  • -40 F to +158 F
  • -40 C to +70 C
  • 32 F to 122 F
  • 2 3/8 in. high x 1 15/16 in. wide x 3 15/16 in. deep
  • 0 C to 50 C
  • IP42,Class I Insulation (24 Vac)
  • 0
  • 130 C Maximum
  • 266 F Maximum
  • Valve
  • 0 to 10 Vdc; 2 to 10 Vdc
  • Stays in place
  • 40.5 lbf
  • 180 N
  • 61 mm high x 49 mm wide x 100 mm deep
  • No
  • 1/4 in.
  • 6 mm
  • Threaded conduit connector
  • Driving @ 60 Hz (sec)-- 125 sec
  • None (use valve dust cap)
  • 100K ohm
  • 1/2 in. conduit hub
  • 1/2 inch and 3/4 inch V58XX Globe Valves
  • 0.35 lb
  • 0.16 kg
  • Low Maintenance Plastic Housing
  • Direct/Reverse Acting Switch
