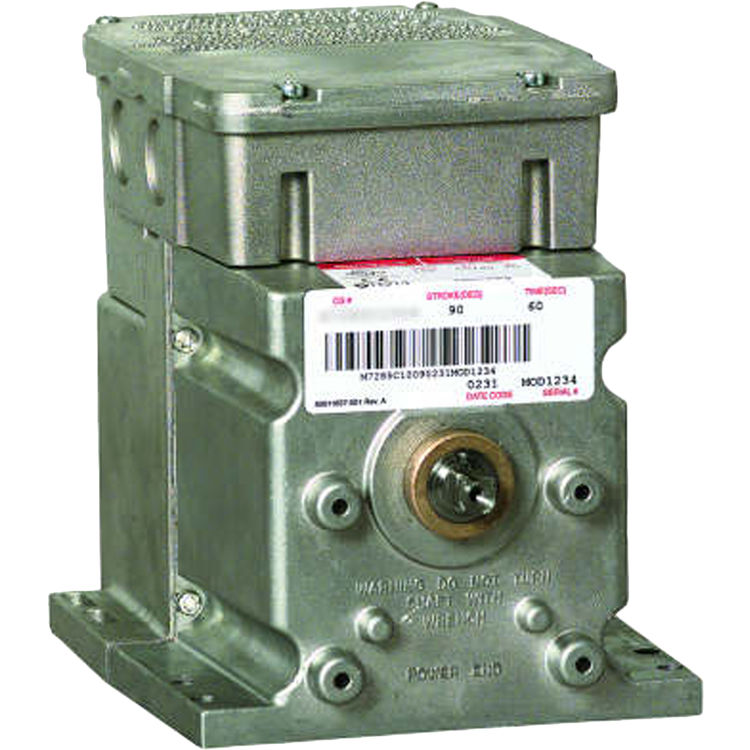

Honeywell M8185D1006/U 24V SR Actuator

SKU: 374348

$288.56/ea
Save 63% · Retail: $780.27

See buying options below:



Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$290.35/ea 3
Order From Manufacturer
Available to Ship in 4-5 weeks
$288.56/ea

About the Honeywell M8185D1006

Honeywell M8185D1006/U 24V SR Actuator. The Honeywell Series 41 and Series 81 Modutrol IV motors are 2-Position (line- and low-Voltage per motor control) spring-return motors. They are used to operate dampers or Valves" applications where it is necessary or desirable to have the controlled element return to the starting Position" the event of power failure or interruption.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # M8185D1006
Weight 1.60 lbs.

Product Features

  • Electric
  • 24V
  • Driving-- 20 VA
  • EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
  • -40 F to +150 F
  • -40 C to +60 C
  • 0
  • AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
  • Adjustable; 90 to 160 degrees, Asymmetrical
  • 0.375 in. Square
  • Two position, SPST
  • 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
  • Spring Return
  • 60 lb-in.
  • 6.8 Nm
  • Yes
  • Clockwise (as viewed from power end) (normally closed)
  • 160 degrees
  • 30-60 sec
  • No
  • 10 mm Square
  • Dual-ended shaft
  • 164 mm high x 140 mm wide x 222 mm deep
  • Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
  • None
  • 8.5 lb
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX for USA and Canada
  • Tradeline
  • Quick-connect terminals
