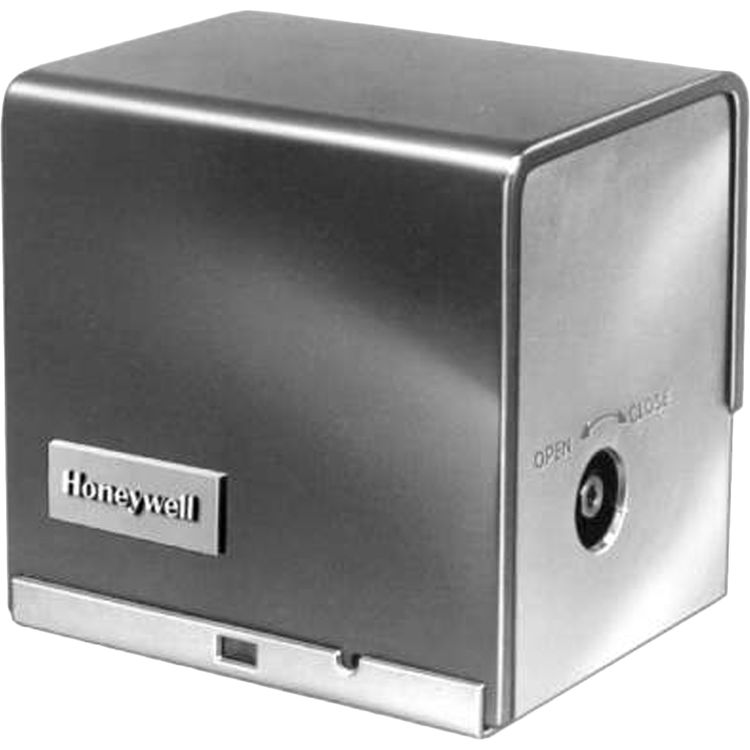

Honeywell M836B1033/U Two Position SR Actuator

SKU: 374351
Minimum Quantity: 1

$232.05/ea
Save 62% · Retail: $615.61

See buying options below:



Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$232.05/ea 2
Order From Manufacturer
Available to Ship in 4-5 weeks
$232.05/ea

About the Honeywell M836B1033

Honeywell M836B1033/U Two Position SR Actuator. Modutrol IV Motors are 2-Position spring-return Motors. They are used to operate dampers or Valves" applications where it is necessary or desirable to have the controlled element return to the starting Position" the event of power failure or interruption. (line- and low-Voltage per motor control)

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # M836B1033
Weight 0.90 lbs.

Product Features

  • 4 1/2 in. high x 4 5/8 in. wide x 3 3/4 in. deep
  • 5 to 95% RH
  • 24 Vac
  • 32 F to 125 F
  • 0 C to 52 C
  • Run Time Maximum-- 40 sec
  • 1
  • Angle of Rotation-- 75 degrees maximum
  • Two position, SPST
  • Spring Return
  • 15 lb-in.
  • 114 mm high x 118 mm wide x 95 mm deep
  • 1.7 Nm
  • Breakaway-- 30 lb-in.
  • Breakaway-- 3.3 Nm
  • Yes
  • Opening-- 25 sec
  • Maximum-- 25 sec
  • Opening-- 1.34 A, Holding-- 0.73 A
  • Opening-- 20.3 W, Holding -- 11.2 W
  • 2, Hexagonal shape
  • 4 lb 10 oz
  • 2.1 kg
  • Foot-mounted
  • 60 Hz
  • Listed File: E4436, Guide: XAPX
  • Tradeline
  • Screw terminals
