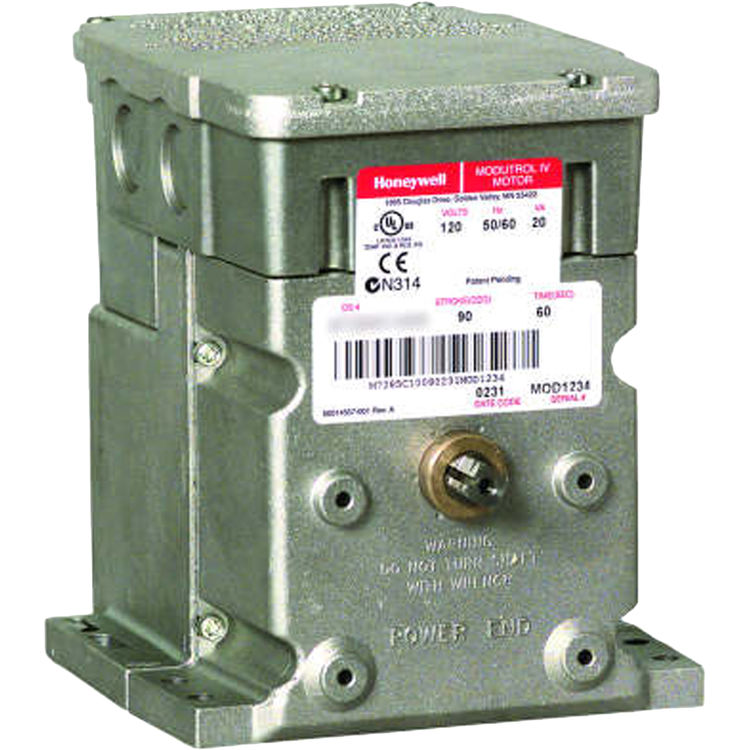

About the Honeywell M9174B1027/U 120V NonSpring Return Actuator

Honeywell M9174B1027/U 120V Foot Mounted Non-Spring Return Actuator. The Honeywell M9174B1027 Actuator is part of the Modutrol IV motors. The non-spring return modulating proportional control motors are used with controllers that provide a Series 90 output to operate dampers or Valves.

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # M9174B1027
Shipping Dimensions 10.0" x 6.0" x 8.0"
Weight 7.00 lbs.
  • Electric
  • 120V
  • Driving-- 12 VA
  • EN55011 (Emission) EN50082-2 (Immunity) 73/23/EEC (LVD)
  • -40 F to +150 F
  • -40 C to +60 C
  • 1
  • AFL - 120 Vac-- 7.2A; ALR- 120 Vac-- 43.2A; AFL - 240 Vac-- 3.6A; ALR- 240 Vac-- 21.6A
  • Adjustable; 90 to 160 degrees, Asymmetrical
  • 0.375 in. Square
  • Proportional, 135 ohm
  • 6 7/16 in. high x 5 1/2 in. wide x 7 5/16 in. deep
  • Non-Spring Return
  • 75 lb-in.
  • 8.5 Nm
  • Yes
  • Clockwise (as viewed from power end) (normally closed)
  • 90 degrees
  • 30-60 sec
  • No
  • 10 mm Square
  • Dual-ended shaft
  • 164 mm high x 140 mm wide x 185 mm deep
  • Either End-- 200 lbs.; Combined on both Shafts-- 300 lbs.
  • 50004263-003
  • Transformer
  • 7.5 lb
  • Foot-mounted
  • 50 Hz; 60 Hz
  • Listed: File No. E4436, Guide No. XAPX for USA and Canada
  • Quick-connect terminals
