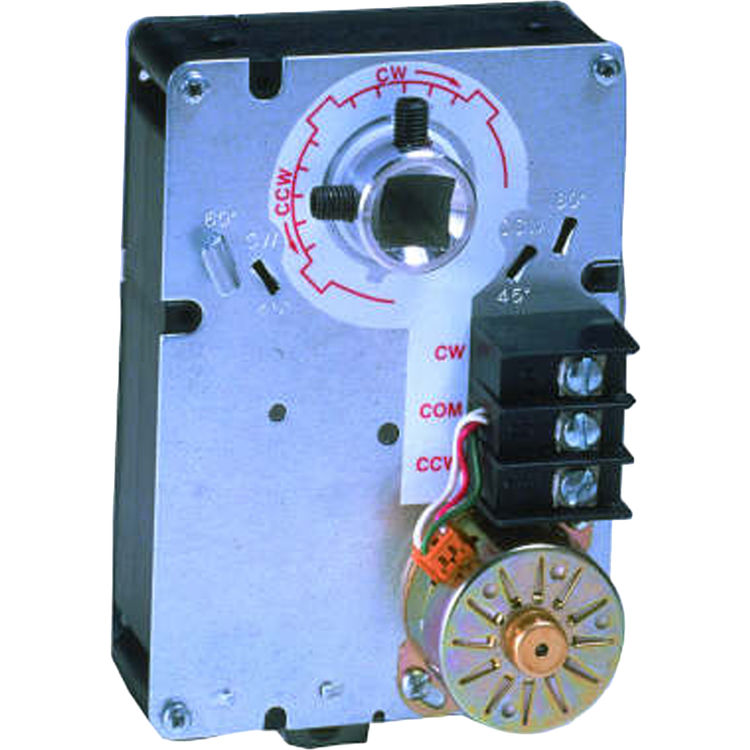

Honeywell ML6161A2017/B Floating SPDT Actuator

SKU: 374402

$71.31/ea
Save 56% · Retail: $162.36

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$71.31/ea

About the Honeywell ML6161A2017

This Honeywell ML6161A2017/B Floating SPDT Actuator. This Honeywell ML6161 control damper is used with variable air volume (VAV) terminal units and for mounting on ball Valves. Used with SPDT or Floating Thermostats, and building automation controls.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML6161A2017
Weight 5.35 lbs.

Product Features

  • HVAC
  • UL873, Plenum Rated
  • Screw terminals
  • 5 to 95% RH, non-condensing
  • Totally enclosed Micro Switch snap-acting switches operate on temperature rise to setpoint.
  • Driving-- 1.8 VA
  • 20 F to 130 F
  • -18 C to +54 C
  • 89/336/ECC, 73/23/EEC
  • cUL C22.2 No. 24-93
  • 20 F to 125 F
  • 5.55 in high x 3.39 in wide x 2.52 in deep
  • -18 C to +50 C
  • N314
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 45
  • 90 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • Floating; SPDT; On/Off
  • Non-Spring Return
  • 141 mm high x 86 mm wide x 64 mm deep
  • 35 lb-in.
  • 4 Nm
  • Maximum Stall-- 70 lb-in.
  • Maximum Stall-- 8 Nm
  • Yes, 201052B
  • By wiring
  • Mechanically limited at 45 or 60 degrees in CW or CCW directions
  • Driving @ 60 Hz-- 420 sec
  • With accessory
  • Aluminum Hub, two set screws
  • 4074ENY Bag Assembly
  • Declutch mechanism
  • 10 to 13 mm square/round
  • 1.5 lb
  • 0.68 kg
  • Steel plate and Plenum rated plastic
  • Direct Coupled
  • 50 Hz; 60 Hz
