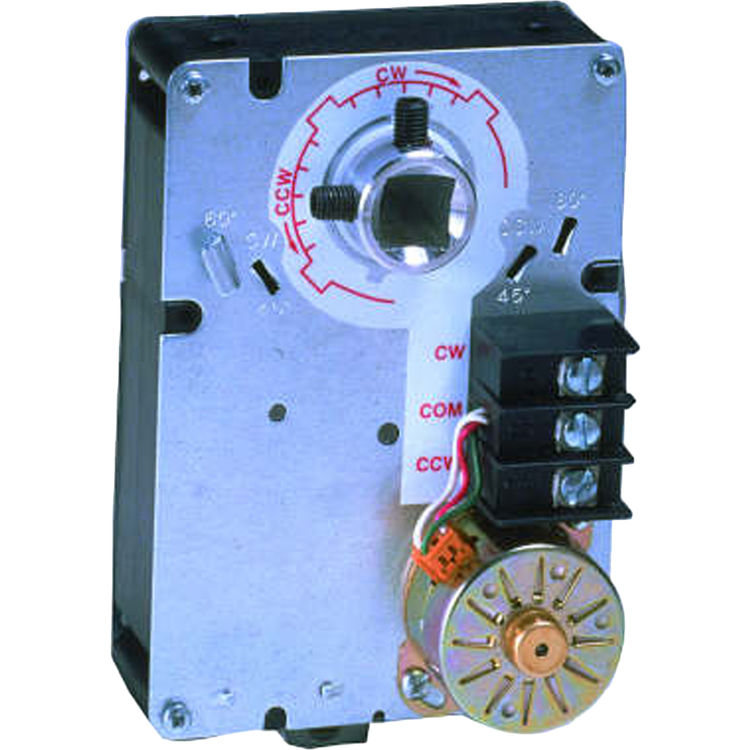

Honeywell ML6174A2010/U SPDT Floating Actuator

SKU: 374411

$104.81/ea
Save 54% · Retail: $229.48

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$104.81/ea

About the Honeywell ML6174A2010

Honeywell ML6174A2010/U SPDT Floating Actuator. The ML6174 control damper is used with variable air volume (VAV) terminal units and for mounting on ball Valves; suitable for use with SPDT or Floating Thermostats or building automation controls.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # ML6174A2010
Weight 3.65 lbs.

Product Features

  • HVAC
  • UL873, Plenum Rated
  • Tradeline
  • Screw terminals
  • 5 to 95% RH, non-condensing
  • Include diaphragm powerhead and Micro Switch assembly that respond to temperature changes in boiler water
  • Driving-- 2.4 VA
  • 20 F to 130 F
  • -18 C to +54 C
  • cUL C22.2 No. 24-93
  • 20 F to 125 F
  • 5.55 in high x 3.39 in wide x 2.52 in deep
  • -18 C to +50 C
  • NEMA 1
  • 0
  • Driving (dB(A) @ 1m)-- 45
  • 90 degrees
  • 3/8 to 1/2 in. square or round
  • Damper
  • Floating; SPDT; On/Off
  • Non-Spring Return
  • 70 lb-in.
  • 141 mm high x 86 mm wide x 64 mm deep
  • 8 Nm
  • Maximum Stall-- 130 lb-in.
  • Maximum Stall-- 15 Nm
  • Yes, 201052B
  • By wiring
  • Mechanically limited at 45 or 60 degrees in CW or CCW directions
  • Driving @ 60 Hz-- 180 sec
  • With accessory
  • Aluminum Hub, two set screws
  • Declutch mechanism
  • 4074ENY Bag Assembly
  • 10 to 13 mm square/round
  • 1.5 lb
  • 0.68 kg
  • Steel plate and Plenum rated plastic
  • Direct Coupled
  • 50 Hz; 60 Hz

Reviews

4.5 out of 5 rating is our rating for PlumbersStock, we got that rating because we have lots of experience and great people with expertise in plumbing. BUT WE WANT YOUR HELP. This product doesn't have any reviews yet, and we don't want to write our own reviews. It is more valuable to us that the customers get to share their experience with our products. Please, if you have any experience with this product, take a moment to share and help someone else who is trying to make a decision. Thank you!

Questions & Answers

*PLUMBERSSTOCK EXPERT* responded:

Thank you for your interest in the Honeywell ML6174A2010/U! To adjust the floating actuator to the desired degree, please refer to page 8 of the technical manual. We will need more information about the HVAC system you will be using this unit on for comparison. You can provide the product number of your current system to one of our customer service representatives. You may contact them @ 435-868-4020 between 8:00 AM to 7:00 PM MT or through e-mail @ support@plumbersstock.com. Please refer to the specification sheet if you have more questions about the Honeywell ML6174A2010/U. Once you’ve made your selection, always remember to click Add to Cart to confirm your order, enter your zipcode and you’ll be all set!
