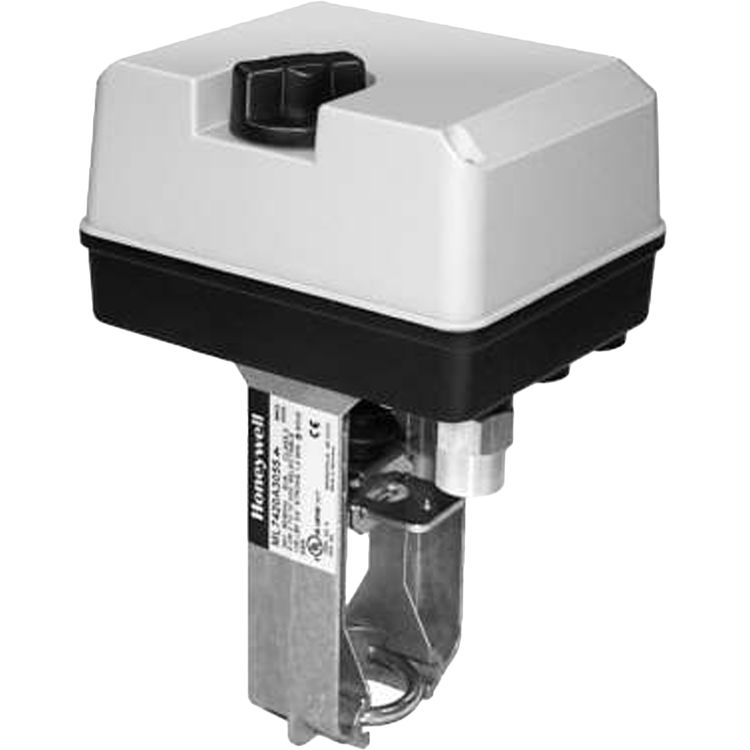

Honeywell ML6420A3049 NSR Valve Actuator

SKU: 374414

$177.93/ea
Save 57% · Retail: $416.08

See buying options below:



Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$177.93/ea 3
Order From Manufacturer
Available to Ship in 4-5 weeks
$177.93/ea

About the Honeywell ML6420A3049

Honeywell ML6420A3049 NSR Valve Actuator. The ML6420 Non-Spring Return Electric Linear Valve Actuators, are Floating control Actuators, used with controllers that provide a switched or Floating single-pole, double-throw (SPDT) output and operate standard Honeywell Valves.

Product Details

Product: Actuator
Manufacturer: Honeywell
Mpn # ML6420A3049
Weight 2.20 lbs.

Product Features

  • HVAC
  • Flammability Rating UL94V-5V
  • Certified
  • Screw terminals
  • 5 to 95% RH
  • #NAME?
  • Driving-- 6 VA
  • -40 F to +158 F
  • -40 C to +70 C
  • Listed
  • 14 F to 122 F
  • 9 9/16 in. high x 5 5/16 in. wide x 6 5/16 in. deep
  • -10 C to +50 C
  • IP54,Class I Insulation (24 Vac)
  • 0
  • 150 C Maximum
  • 300 F Maximum
  • Valve
  • SPDT; Two position; Floating
  • Stays in place
  • 135 lbf
  • 600 N
  • 242 mm high x 135 mm wide x 161 mm deep
  • Yes
  • 3/4 in.
  • 20 mm
  • Conduit connector and one knockout on actuator case
  • Driving @ 60 Hz-- 60 sec
  • Knob
  • 1/2 in. conduit hub; 1/2 in. flexible conduit adapter
  • 2.9 lb
  • 1.3 kg
  • ABS-FR Plastic, aluminum yoke
  • Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves (3/4" or 20mm stroke)
  • 50 Hz; 60 Hz
