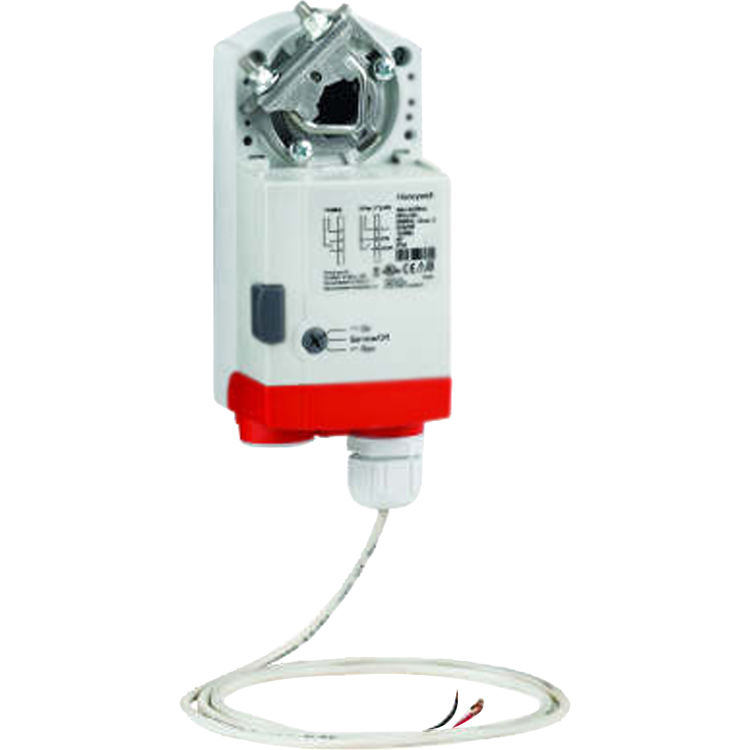

Honeywell MN6105W1011/U Two Position, Floating 24V Actuator

SKU: 374444

$74.31/ea
Save 56% · Retail: $169.21

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$74.31/ea

About the Honeywell MN6105W1011

Honeywell MN6105W1011/U Two Position, Floating 24V Actuator. The MN6105W is a 44 lb-in, non-spring return Direct-Coupled, Low Voltage Actuator that accepts Floating, on/off (SPDT) control for: air dampers, air handlers, ventilation flaps, louvers, and ball Valves. This model includes a 3 foot whip.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # MN6105W1011
Weight 11.60 lbs.

Product Features

  • HVAC
  • 50 Hz; 60 Hz
  • UL873, Plenum Rated
  • Tradeline
  • 18 AWG color-coded cable
  • 5 to 95% RH, non-condensing
  • 24 Vac +20%, -15%; 24 Vdc
  • Driving-- 5 VA
  • -22 F to +176 F
  • -30 C to +80 C
  • 89/336/ECC, 73/23/EEC
  • 5.23 in high x 2.60 in wide x 2.44 in deep
  • cUL C22.2 No. 24-93
  • -5 F to +140 F
  • -20 C to +60 C
  • N314
  • NEMA 2; IP54
  • 0
  • Driving (dB(A) @ 1m)-- 35
  • 24 Vac
  • 1/4 to 1/2 in. square or 3/8 to 5/8 in. round
  • Damper; Valve
  • 134 mm high x 66 mm wide x 62 mm deep.
  • Floating; SPDT; On/Off
  • Non-Spring Return
  • 44 lb-in.
  • 5 Nm
  • Maximum Stall-- 70 lb-in.
  • Maximum Stall-- 8 Nm
  • Yes, SSW2-1M
  • By switch
  • Dual Integral Adj. Stops (3 degree increments)
  • Threaded conduit connector
  • Mounting bracket, screws, shaft adapter, water-tight strain-relief cable fittings
  • Driving @ 60 Hz-- 95 sec
  • U-bolt clamp
  • Declutch mechanism
  • 6 to 13 mm square or 8 to 16 mm round
  • 36 in.
  • 0.9 m
  • 1 lb
  • 0.45 kg
  • Plenum rated plastic housing
  • Integral 1/2 in. NPSM conduit connection.
  • Direct Coupled
