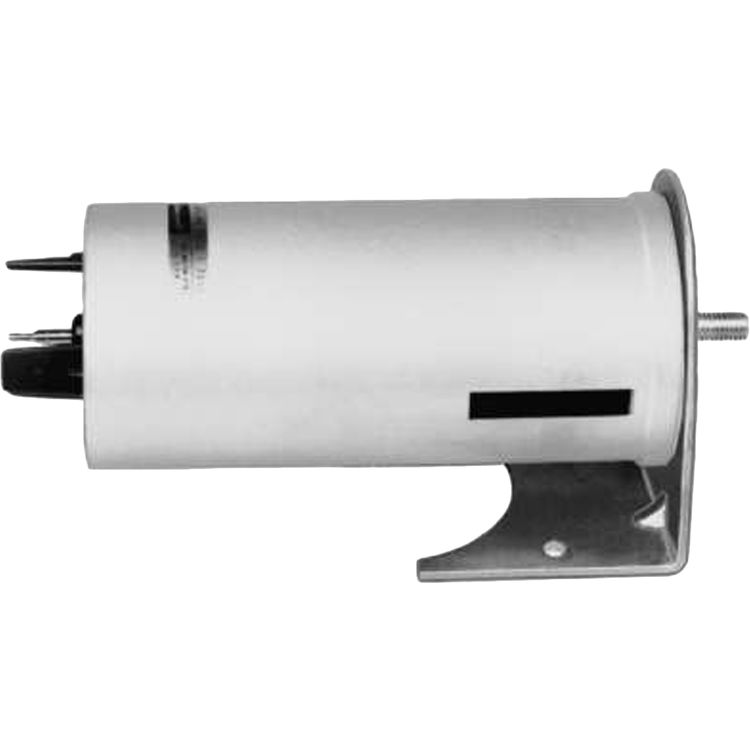

Honeywell MP909E1026 Honeywell MP909E1026 3-13 Psi Spring Range Pneumatic Damper Actuator

Honeywell MP909E1026 3-13 Psi Spring Range Pneumatic Damper Actuator

SKU: 374471

This product is not currently available for purchase.

About the Honeywell MP909E1026 3-13 Psi Spring Range Pneumatic Damper Actuator

The Honeywell MP909E1026 3-13 Psi Spring Range Pneumatic Damper Actuator provides consistent control of your HVAC system. It has rugged ribbed aluminium body and low-friction shaft bearing. This damper actuator can be mounted in any position, externally or internally. It measures 6 5/16 inches long and 2 13/32 inches in diameter. Its maximum safe operating pressure is 30 psi and has a temperature range of 50 F to 140 F. It is very easy to install and requires no special tools. This Honeywell MP909E1026 3-13 Psi Spring Range Pneumatic Damper Actuator’s air connection is sized for 5/32-inch (4 mm) or 1/4-inch (6 mm) O.D. plastic tubing. This product is available in different operating ranges for individual or series operation. The Honeywell MP909D1201 3-8 Psi Spring Range Pneumatic Damper Actuator is absolutely compatible with all the products from other companies. This product from Honeywell is quality tested and approved by Underwriters Laboratories Inc

Product: Damper
  Actuator
Style: Parts
Other Info: Easy To Install
Trade Tool Type: HVAC
Manufacturer: Honeywell
Mpn # MP909E1026
Weight 5.20 lbs.
  • Maximum Safe Operating Pressure (psi) 30 psi
  • Positive leak proof seal
  • Versatile mounting and connecting hardware options
  • Protected barb connector.
  • Close tolerance on operating range and stroke
  • Underwriters Laboratories Inc. Approved
  • Spring Return Fail Safe Mode
  • Damper Actuator Type
  • Operating Humidity Range (% RH) 5 to 95% RH
  • Approvals, Underwriters Laboratories Inc
  • Includes. 3/8 in.-16 Threaded Shaft Actuator
  • Temperature Range (F) 50 F to 140 F
  • Dimensions (mm) 160 mm long x 61 mm diameter
  • Rugged ribbed aluminum body
  • Low-friction shaft bearing
