Honeywell MP909E1240 Damper Actuator

SKU: 374480
Minimum Quantity: 1

$110.31/ea
Save 56% · Retail: $251.16

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$110.31/ea

About the Honeywell MP909E1240

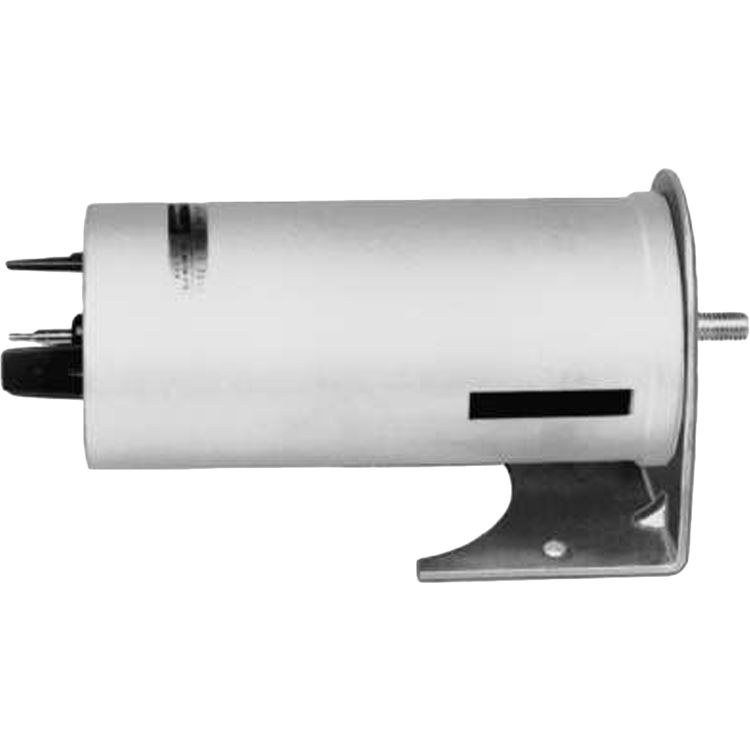

The Honeywell MP909E1240 5-10 Psi , 3.1 inch Spring Range Pneumatic Damper Actuator provides consistent control of your HVAC system. It has rugged ribbed aluminium body and low-friction shaft bearing. This damper actuator can be mounted in any position, externally or internally. It measures 6 5/16 inches long and 2 13/32 inches in diameter. Its maximum safe operating pressure is 30 psi and has a temperature range of 50 F to 140 F. It is very easy to install and requires no special tools. The Honeywell MP909E1240 5-10 Psi , 3.1 inch Spring Range Pneumatic Damper Actuator ’s air connection is sized for 5/32-inch (4 mm) or 1/4-inch (6 mm) O.D. plastic tubing. This product is available in different operating ranges for individual or series operation. The Honeywell MP909D1201 3-8 Psi Spring Range Pneumatic Damper Actuator is absolutely compatible with all the products from other companies. This product from Honeywell is quality tested and approved by Underwriters Laboratories Inc

Product Details

Product: Actuator
Manufacturer: Honeywell
Material: Aluminum
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # MP909E1240
Weight 24.35 lbs.

Product Features

  • Maximum Safe Operating Pressure (psi) 30 psi
  • Approvals, Underwriters Laboratories Inc
  • Includes. 3/8 in.-16 Threaded Shaft Actuator
  • Temperature Range (F) 50 F to 140 F
  • Dimensions (mm) 160 mm long x 61 mm diameter
  • Rugged ribbed aluminum body
  • Positive leak proof seal
  • Protected barb connector.
  • Close tolerance on operating range and stroke
  • Low-friction shaft bearing
  • Underwriters Laboratories Inc. Approved
  • Spring Return Fail Safe Mode
  • Damper Actuator Type
  • Operating Humidity Range (% RH) 5 to 95% RH
