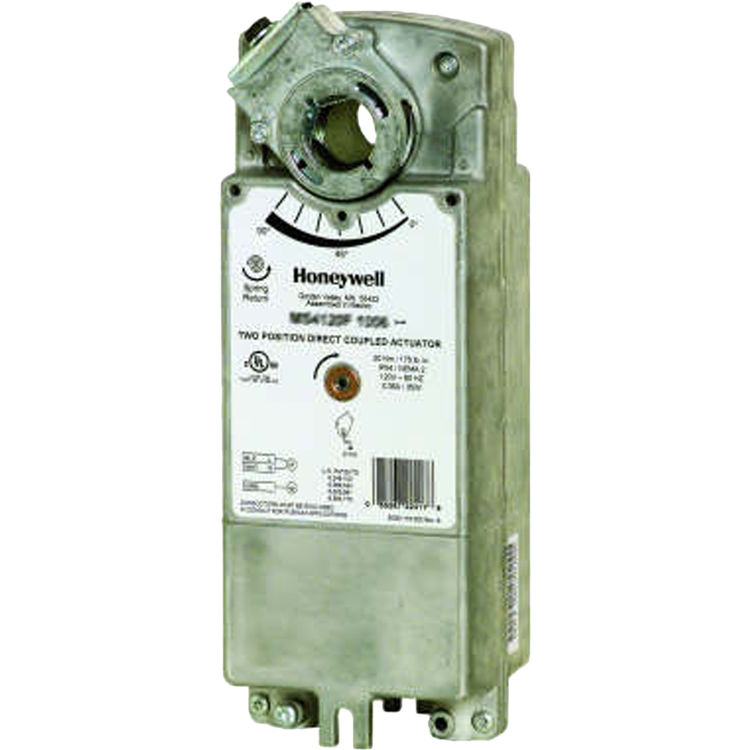

Honeywell MS4620F1203/B Fast-Acting, Two-Position Actuator

SKU: 374567

$302.48/ea
Save 63% · Retail: $809.19

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$302.48/ea

About the Honeywell MS4620F1203

Honeywell MS4620F1203/B Fast-Acting, Two-Position Actuator. Honeywell MS4620 Actuator accepts Two-Position control with an integral junction box. Accepts an on/off signal from a single-pole, single-throw controller. Reliability operates" smoke control systems requiring UL555S ratings up to 350F.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # MS4620F1203
Weight 0.15 lbs.

Product Features

  • Fire and Smoke
  • 50 Hz; 60 Hz
  • UL873, Plenum Rated
  • Teflon-jacketed cable
  • 5 to 95% RH, non-condensing
  • 24 Vac
  • Driving-- 0.20A, 35W, Holding-- 0.14A, 10W
  • -40 F to +140 F
  • -40 C to +60 C
  • 89/336/ECC, 73/23/EEC
  • cUL C22.2 No. 24-93
  • 10.67 in high x 3.94 in wide x 2.95 in deep
  • -40 F to +130 F
  • -40 C to +55 C
  • 250 Vac, 5 A res
  • N314
  • NEMA 2; IP54
  • 2
  • Driving (dB(A) @ 1m)-- 70; Holding (dB(A) @ 1m)-- 20 (no audible noise)
  • 95 degrees
  • 3/8 to 1.06 in. round or 3/8 to 11/16 in. square
  • Damper
  • 271 mm high x 100 mm wide x 75 mm deep
  • Two position; SPST
  • Spring Return
  • 175 lb-in.
  • 20 Nm
  • Maximum Stall-- 425 lb-in.; Minimum Driving at 350 F-- 175 lb-in.
  • Maximum Stall-- 48 Nm; Minimum Driving at 175 C-- 20 Nm
  • No
  • Driving @ 60 Hz (sec)-- 15 sec
  • Maximum-- 15 sec
  • Self-centering clamping
  • Self-centering shaft adapter, 3mm crank
  • Manual crank
  • 10 to 27 mm round or 10 to 18 mm square
  • By orientation
  • 40 in.
  • 1 m
  • 8 lb
  • 3.63 kg
  • Aluminum housing
  • Two integral 3/8 in. flexible conduit connections
  • Direct Coupled
