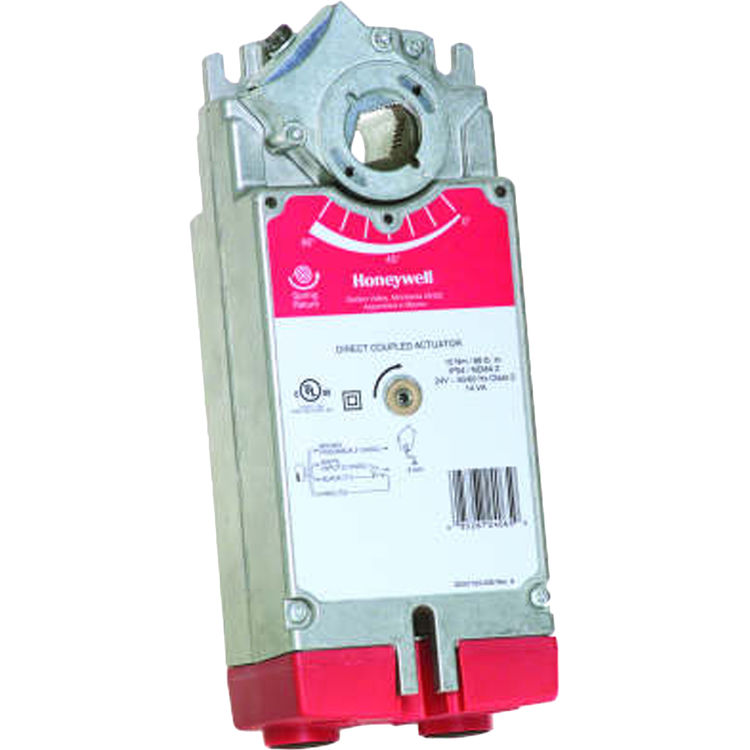

Honeywell MS7520A2007/U Honeywell Floating, Direct-Coupled Actuator

SKU: 374583
Minimum Quantity: 1

$228.04/ea
Save 64% · Retail: $628.84

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$228.04/ea

About the Honeywell MS7520A2007

Honeywell MS7520A2007/U Honeywell Floating, Direct-Coupled Actuator. Honeywell MS7520 is a 175 lb-in, torque, spring return, Direct-Coupled, line Voltage Actuator that accepts on/off or modulating controls for air dampers, air handlers, ventilation flaps, louvers and ball Valves.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Coupled
Mpn # MS7520A2007
Weight 2.20 lbs.

Product Features

  • HVAC
  • 50 Hz; 60 Hz
  • UL873, Plenum Rated
  • Enclosed screw terminal strip (22 to 14 AWG)
  • 5 to 95% RH, non-condensing
  • Driving-- 16 VA, Holding-- 5 VA
  • -40 F to +158 F
  • -40 C to +70 C
  • 89/336/ECC, 73/23/EEC
  • cUL C22.2 No. 24-93
  • 9.72 in high x 3.94 in wide x 2.95 in deep
  • -40 F to +140 F
  • -40 C to +60 C
  • N314
  • NEMA 2
  • 0
  • Driving (dB(A) @ 1m)-- 40; Holding (dB(A) @ 1m)-- 20 (no audible noise)
  • 3/8 to 1.06 in. round or 3/8 to 11/16 in. square
  • Valve; Damper
  • SPDT; Floating; On/Off; (0)2-10 Vdc (4-20 mA w/500 ohm resistor)
  • 247 mm high x 100 mm wide x 75 mm deep
  • Spring Return
  • 175 lb-in.
  • 20 Nm
  • Maximum Stall-- 300 lb-in.
  • Maximum Stall-- 34 Nm
  • Yes, SW2-US
  • By switch
  • Mechanically limited 5 degree increments
  • Driving @ 60 Hz-- 90 sec
  • Maximum-- 20 sec
  • Mounting bracket, self-centering shaft adapter, 3mm crank
  • 95 degrees
  • Self-centering clamping
  • Manual crank
  • 10 to 27 mm round or 10 to 18 mm square
  • By orientation
  • Min. 95 kOhm
  • 6 lb
  • 2.72 kg
  • Aluminum housing, Plenum rated plastic access cover
  • Integral 1/2 in. NPSM conduit connection.
  • Direct Coupled
