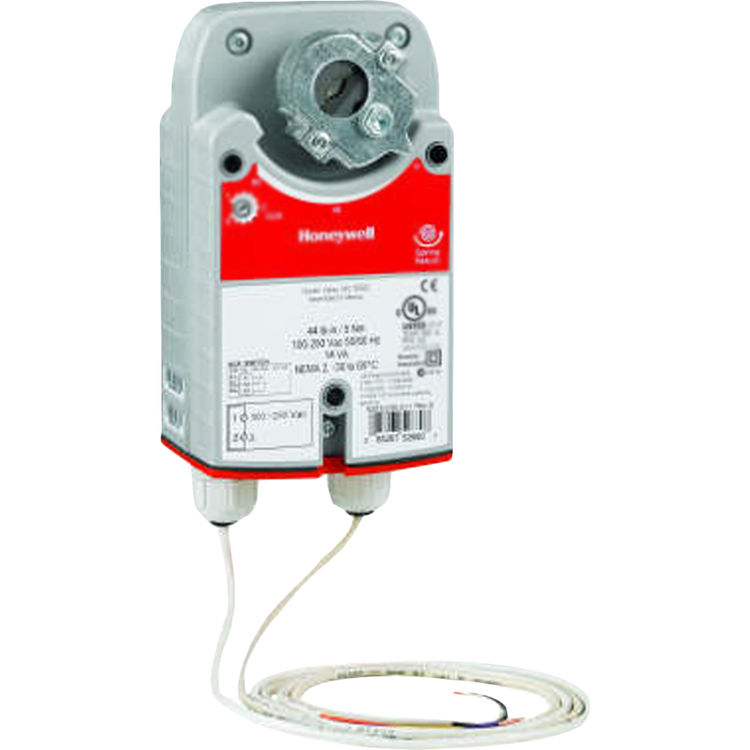

Honeywell MS8105W1130/U Honeywell Two Position Direct-Coupled Actuator

SKU: 374593

$148.61/ea
Save 62% · Retail: $393.64

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$148.61/ea

About the Honeywell MS8105W1130

Honeywell MS8105W1130/U Honeywell Two Position Direct-Coupled Actuator. Honeywell MS8105 is a 44 lb-in, torque, spring return, Direct-Coupled, line Voltage Actuator that accepts on/off or modulating controls for air dampers, air handlers, ventilation flaps, louvers and ball Valves.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Coupled
Mpn # MS8105W1130

Product Features

  • HVAC
  • 50 Hz; 60 Hz
  • UL 873
  • 18 AWG color-coded cable
  • 5 to 95% RH, non-condensing
  • 24 Vac or Vdc
  • Driving-- 8 VA
  • .-40 F to +150F
  • .-40 C to +65 C
  • EMC 2004/108/EC; Certification Low Voltage Directive 2006/95/EC; IEC 60730-1 and Part 2-14
  • cUL C22.2 No. 24-93
  • 6 81/54 high x 3 55/84 wide x 3 5/32 deep
  • .-22 F to +149F
  • .-30 C to +65 C
  • 250 Vac, 8 A res (5 A ind)
  • N314
  • NEMA 2; IP54
  • 1
  • Driving (dB(A) @ 1m)-- 50; Holding (dB(A) @ 1m)-- 20 (no audible noise)
  • 95 degrees
  • 3/8 to 5/8 in. round or 1/4 to 1/2 in. square
  • Damper; Valve
  • 177 mm high x 98 mm wide x 80 deep
  • Two position; SPST
  • Spring Return
  • 44 lb-in.
  • 5 Nm
  • Maximum Stall-- 105 lb-in.
  • Maximum Stall-- 12 Nm
  • adjustable 0-95 degrees
  • No
  • By switch
  • Mechanically limited 5 degree increments
  • Mounting bracket, self-centering shaft adapter
  • Threaded conduit connector
  • Driving @ 60 Hz-- 45 sec
  • Maximum-- 25 sec
  • Self-centering clamping
  • N/A
  • 9 to 16 mm round or 6 to 13 mm square
  • By orientation
  • 36 in.
  • 0.9 m
  • 3.5 lb
  • 1.6 kg
  • Plenum rated plastic housing
  • Integral 1/2 in. NPSM conduit connection.
  • Direct Coupled
