Honeywell PP902D1007 Honeywell PP902D1007/U Pressure Reducing Valve

Honeywell PP902D1007/U Pressure Reducing Valve

SKU: 375725

This product is not currently available for purchase.

About the Honeywell PP902D1007/U Pressure Reducing Valve

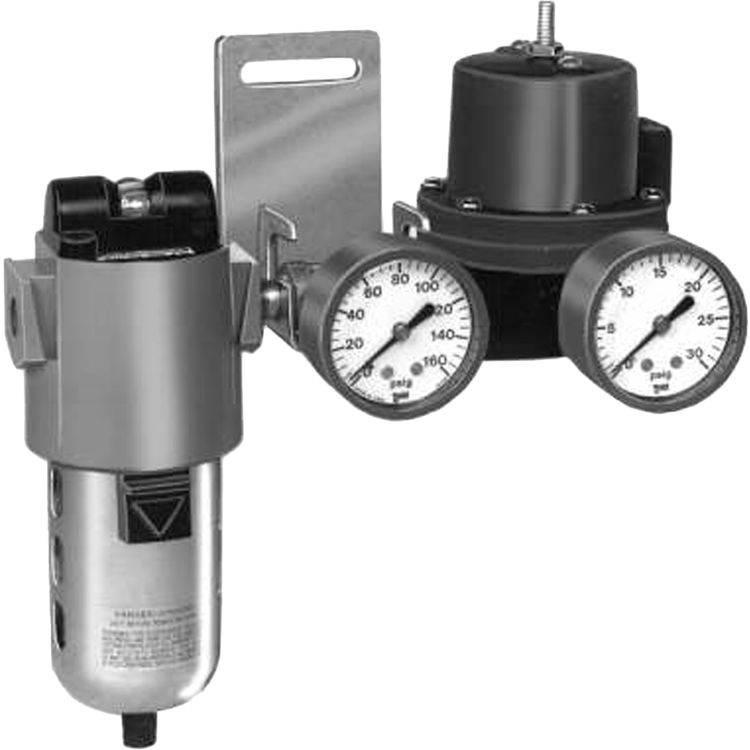

Honeywell PP902D1007/U Pressure Reducing Valve. PP902 pneumatic valve controls the pressure of the air delivered to pneumatic control systems. Models available for single-pressure systems or two-pressure systems (Day/Night or Summer/Winter) requiring two independently regulated pressure settings.

Manufacturer: Honeywell
Mpn # PP902D1007
Weight 0.20 lbs.
  • N/S
  • 11 in. high, 8 7/8 in. wide, 3 3/4 in. deep
  • 279 mm high, 225 mm wide, 95 mm deep
  • Submicron filter assembly and two psig gages.
  • Bracket furnished
  • Inlet and out air: 1/4 in. NPT (female)
  • Inlet-- 45 to 150 psi; Output-- primary pressure: adjustable 0 to 25 psi; secondary pressure: adjustable 0 to 5 psi above primary rating
  • Inlet-- 310 to 1034 kPa; Output-- primary pressure: adjustable 0 to 172 kPa; secondary pressure: adjustable 0 to 34kPa above primary rating
