Honeywell RP920B1056 Honeywell RP920B1056/U Pneumatic Controller

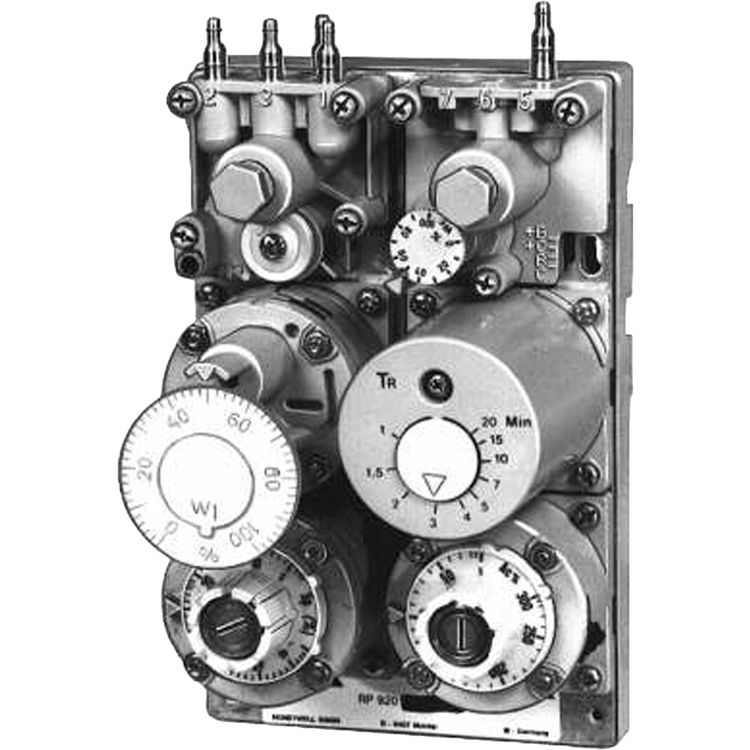

Honeywell RP920B1056/U Pneumatic Controller

SKU: 375936

This product is not currently available for purchase.

About the Honeywell RP920B1056/U Pneumatic Controller

Honeywell RP920B1056/U Pneumatic Controller. The Pneumatic Controller is a High capacity, single/dual input pneumatic controller, used in conjunction with remote sensors, to provide proportional (P) or proportional plus integral (P+I) control of temperature, humidity, pressure, or dew point for heating and air conditioning.

Product: Temperature Control
  Controller
Manufacturer: Honeywell
Style: Repair & Replacement
  Control Board
  Parts
  Pneumatic
Trade Tool Type: HVAC
Mpn # RP920B1056
Weight 1.32 lbs.
  • Proportional plus integral control option minimizes offset.
  • The controller is capable of operating with the MLP (Mainline pressure) as low as 15 psi (100 kPa) or as high as 23 psi (160 kPa), however recalibration may be required. All RP920s can be converted to reverse acting in the field. For additional technical
  • N/S
  • 5 to 95% RH
  • Air: Combination 5/32 in. by 1/4 in. barb. Optional accessory 14003755-001 (barb fitting for port 4,6,7, or 8 for all RP920).
  • Input Signal-- 3 to 15 psi; Output-- 3 to 13 psi, output signal maximum is Mainline Pressure minus 1/2 psi
  • Input Signal-- 21 to 103 kPa; Output-- 21 to 90 kPa, output signal maximum is Mainline Pressure minus 7 kPa
  • Reverse Acting
  • 17 to 21 psi; Maximum Safe-- 30 psi
  • 115 to 145 kPa; Maximum Safe-- 205 kPa
  • at 18 psi (124 kPa) MLP and 8.5 psi (59 kPa) BLP (does not include sensor usage): 0.046 scfm (21.7 mL/s)
  • Miniature diaphragm technology provides high degree of accuracy and reliability.
  • dual
  • Yes
  • Direct Acting models can be converted to Reverse Acting (RA) function in field.
  • Local or remote set point field option. Integral action cut-off provides trouble-free automatic startup.
  • Transparent cover (optional) provides protection while allowing easy reading of settings and gages.
  • Corrosion resistant construction.
  • 40 F to 130 F
  • 5 C to 55 C
  • Without remote control point adjustment capability.
