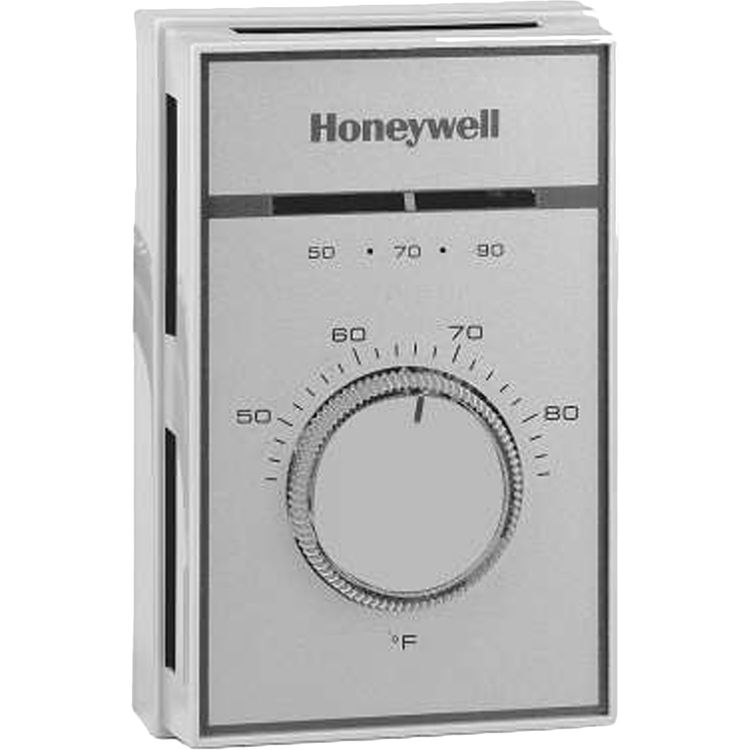

Honeywell T451B3004 Honeywell T451B3004/U Light and Medium Duty Line Voltage Thermostat

Honeywell T451B3004/U Light and Medium Duty Line Voltage Thermostat

SKU: 376117

This product is not currently available for purchase.

About the Honeywell T451B3004/U Light and Medium Duty Line Voltage Thermostat

Honeywell T451B3004/U Light and Medium Duty Line Voltage Thermostat. Light and Medium Duty Line Voltage Thermostats control line voltage valves, motors, contractors, electric heat, elements, duct furnaces, and fan coil units in heating/cooling systems.

Manufacturer: Honeywell
Style: Medium
Mpn # T451B3004
Weight 1.90 lbs.
  • UN 2037 Butane (Receptacles, small, containing gas cartridges), 2.1, LTD. QTY, one Fiberboard box X 1kg
  • Flylead
  • 120 to 227 Vac
  • Vapor filled dual diaphragm
  • 2 F
  • Champagne gold face-plate with beige cover
  • SPST- breaks on temperature rise; with positive off
  • 50 F to 86 F
  • Heating
  • 4 1/2 in. high x 2 15/16 in. wide x 1 1/2 in. deep (switches and wiring terminals protrude into outlet box 3/4 in.)
  • 115 mm high x 75 mm wide x 39 mm deep (switches and wiring terminals protrude into outlet box 19 mm)
  • Vertical scaleplate with thermometer and high accuracy dual diaphragm sensor
  • 22 A @ 120 - 240 Vac Resistive; 19 A @ 277 Vac Resistive.; 9.8 FLA / 58.8 ALR @ 120 Vac; 5.6 FLA / 33.6 ALR @ 208 Vac; 4.9 FLA / 29.4 ALR @240 Vac; 4.2 FLA / 25.2 ALR @277 Vac
  • 50 Hz; 60 Hz
  • Listed; File No. E4436, Guide No. XAPX
  • CSA Certified, File No. LR1322
