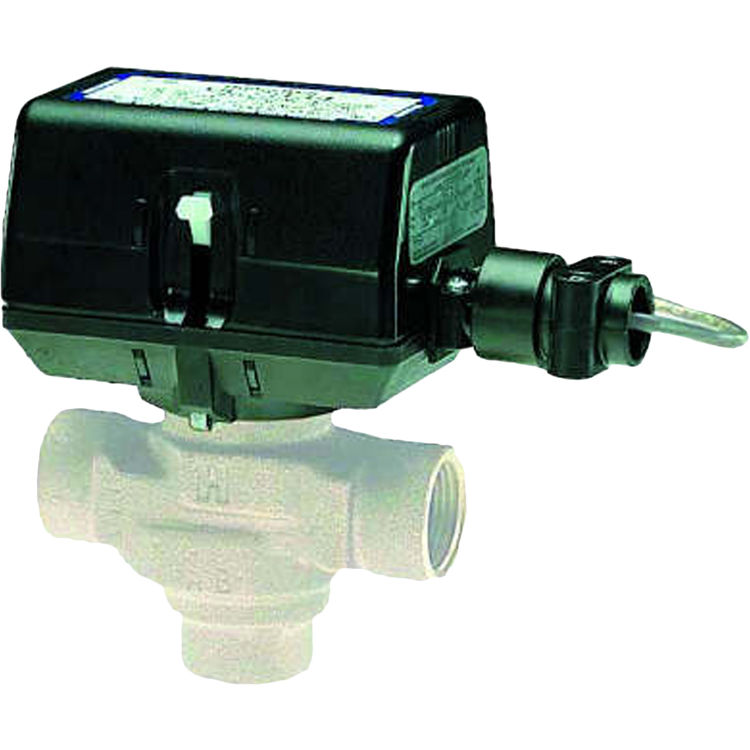

Honeywell VC6934ZZ11 Honeywell VC6934ZZ11/U Floating Actuator

Honeywell VC6934ZZ11/U Floating Actuator

SKU: 378441
$ 116.69 / ea
 Free Shipping!
Save 61% · Retail: $299.19

Exception ocurred: "file_put_contents(../resources/views/storeblade/product_pricing_leadtime.blade.php): failed to open stream: Permission denied"!   Available to Ship in 2-3 weeks




Ships From Price Qty
Boise Idaho Warehouse
Ships in 5-7 Days
$116.69/ea 37
Chicago Illinois Warehouse
Ships in 5-7 Days
$116.69/ea 200
Order From Manufacturer
Available to Ship in 2-3 weeks
$116.69/ea

About the Honeywell VC6934ZZ11/U Floating Actuator

Honeywell VC6934ZZ11/U Floating Actuator for VC Series Valves. Actuators control central air, fan coil systems, radiators and convectors. Depending on the model, it can be controlled by a Low Voltage SPST or SPDT switch, pulse-width modulated 24 Vac signal, or Floating input, modulating controller.

Product: Float
  Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # VC6934ZZ11
Weight 1.80 lbs.
  • HVAC
  • 50 Hz; 60 Hz
  • Listed 94-5V
  • CSA Certified: LR1322-367
  • Plenum-rated cable
  • 5 to 95% RH, non-condensing
  • 24 Vac
  • Driving-- 6 VA
  • -40 F to +150 F
  • -40 C to +65 C
  • 89/336/ECC, 73/23/EEC
  • 2.8 in. high x 3.7 in. wide x 2.7 in. deep
  • 32 F to 150 F
  • 0 C to 65 C
  • Double Insulated,IP40
  • 0
  • 95 C
  • 203 F
  • Valve
  • SP3T (tri-state) Floating; 24 Vac
  • Stays in place
  • 0.4 in.
  • 70 mm high x 94 mm wide x 68 mm deep
  • 10 mm
  • Molded strain relief, conduit clamp
  • Driving @ 60 Hz (sec)-- 120 sec
  • 60 psid
  • 400 kPa
  • Self-alignment
  • Lever
  • 5 ft.
  • 1.5 m
  • Flexible conduit adapter
  • 3000 Series 2-way and 7000 Series VC valve bodies only
  • 0.84 lb
  • 0.38 kg
  • Plastic housing
  • Direct Coupled
