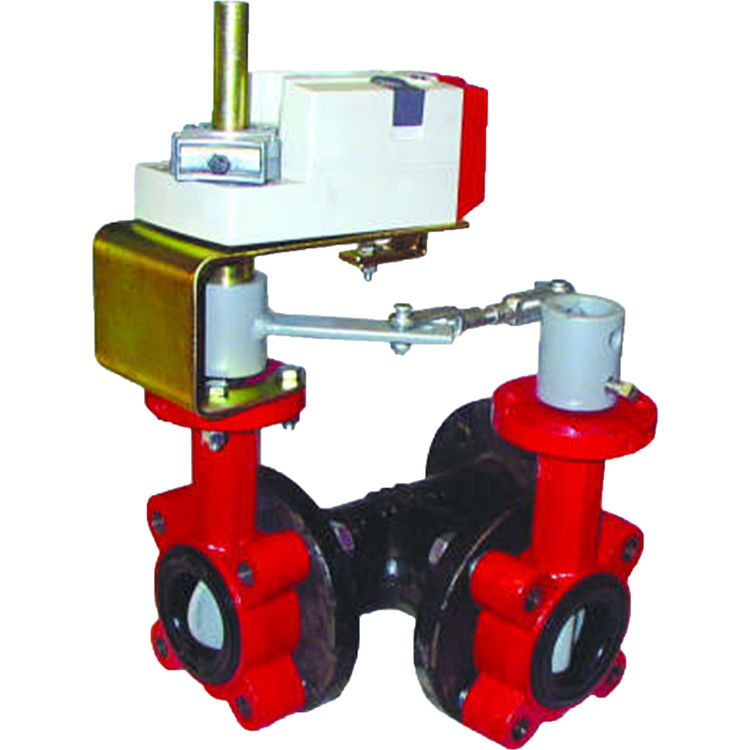

THE Honeywell VFF3RV1YXR 3-WAY (A-B-AB) 12 Inch Resilient-Seat Flanged Butterfly

SKU: 379327
Minimum Quantity: 1

$9,184.56/ea Free Shipping!
Save 59% · Retail: $22,608.16

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$9,184.56/ea

About the Honeywell VFF3RV1YXR

THE Honeywell VFF3RV1YXR 3-WAY (A-B-AB) 10 Inch Resilient-Seat Flanged Bidirectional Butterfly Valve is a certified and approved product of Honeywell. This three way valve is ideal for high water applications like chilled water, hot water, cooling tower water and thermal storage processing. The Honeywell VFF3RV1YXR 3-WAY (A-B-AB) 10 Inch Resilient-Seat Flanged Butterfly Valve features a single actuator that synchronizes disc positions, and Nylon coating which offers reduced valve friction. This valve also includes Position indicator and, thanks to the resilient-seat technology offered in many Honeywell valves, the Honeywell VFF3RV1YXR 3-WAY (A-B-AB) 10 Inch Resilient-Seat Flanged Bidirectional Butterfly Valve has a close off rating that has three times the closing force of valves that have been available previously. It gives you the flexibility to decide on the precise, most cost-effective actuator for your application. This product is compact enough to handle easily, and yet engineered for durability and reliability. With a high rate of flow capacity and manual or end of line shut off applications. The Honeywell 3-WAY Butterfly Valve will meet and even exceed your HVAC application expectations.

Product Details

Manufacturer: Honeywell
Use: Water
Type: Butterfly Valve
Style: 3 Way
Size:
Electrical Voltage: 24 Volt
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # VFF3RV1YXR

Product Features

  • Bi-directional flow.
  • ISO 5211 actuator mounting flange.
  • Anti-condensate heaters standard with NEMA 4X and NEMA 4 actuators
  • Declutchable override handwheel standard with NEMA 4X actuators.
  • Non-declutchable, override handwheel standard with NEMA 4 actuators.
  • Maximum Differential Pressure Ratings (Close-off) (psi) 175 psi
  • Maximum Differential Pressure Ratings (Close-off) (kPa) 1206 kPa
  • Includes Position indicator
  • Flow Characteristic Modified Equal Percent
  • Controlled Medium Chilled or hot water with up to 50% Glycol
  • Connection Type Lugged
  • Modified equal flow characteristic.
  • High Flow and high close off
  • Three way valve
  • Larger valves body sizes.
  • Cast iron valve body polyester-coated for weather, chemical, ultra-violet, abrasion, and impact protection
  • Stainless steel valve stem with close-tolerance internal
  • Double-D disk connection with no points for corrosion access.
  • Peroxide-cured EPDM resilient valve seat doubles as flange gasket.
  • Bubble-tight seat leakage at rated close-off.
  • 50 psid close-off rating, lower operating torque with undercut disks
