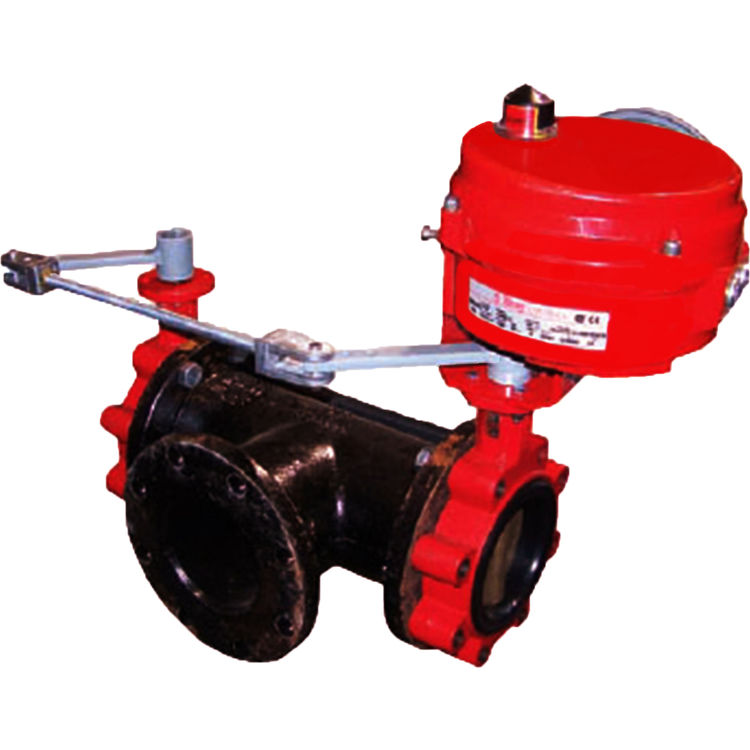

Honeywell VFF6FW1YER 3-Way 2-Inch Resilient Seat Butterfly Valve

SKU: 379409

$1,356.70/ea Free Shipping!
Save 59% · Retail: $3,339.58

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$1,356.70/ea

About the Honeywell VFF6FW1YER

3-WAY (A-AB-B) 2 INCH RESILIENT-SEAT FLANGED BUTTERFLY VALVE 175 PSID CLOSE-OFF PNEUMATIC 80 PSI BIDIRECTIONAL 120VAC EP SOLENOID

Product Details

Manufacturer: Honeywell
Use:
Style: 3 Way
Electrical Voltage: 24 Volt
Connection Type: Flanged
Other Info: Easy To Install
Trade Tools: HVAC
Mpn # VFF6FW1YER

Product Features

  • Sizes from 2 to 20 inches with ANSI Class 125/150 lug pipe connections.
  • Bubble-tight seat leakage at rated close-off.
  • Close-off rating of 175 psid in sizes 2 in. to 12 in. with full-cut disks.
  • Close-off rating of 150 psid in sizes 14 in. to 20 in. with full-cut disks.
  • 250 psi end-of-line close-off pressure rating with non-automated valves.
  • 50 psid close-off rating, lower operating torque with undercut disks.
  • ISO 5211 actuator mounting flange.
  • Actuators available in NEMA 2 (general purpose), NEMA 4X (watertight/corrosion-resistant), and NEMA 4 (watertight) enclosures.
  • Anti-condensate heaters standard with NEMA 4X and NEMA 4 actuators.
  • Declutchable override handwheel standard with NEMA 4X actuators.
  • Non-declutchable, override handwheel standard with NEMA 4 actuators.
  • Bi-directional flow.
  • Available with four, factory-installed electric actuation interfaces in 24V and 120V power: 2-position spring return,
  • Floating (tri-state), Modulating (2-10 Vdc), Modulating/Floating Spring Return.
  • Modified equal percentages flow characteristic.
  • Extended neck for 2 inches of pipe insulation.
  • Nylon 11-coated, cast iron disks for corrosion resistance.
  • Reduced friction and use of lower-torque actuators with larger valves body sizes.
  • Cast iron valve body polyester-coated for weather, chemical, ultra-violet, abrasion, and impact protection.
  • Stainless steel valve stem with close-tolerance internal double-D disk connection with no points for corrosion access.
  • Peroxide-cured EPDM resilient valve seat doubles as flange gasket.
