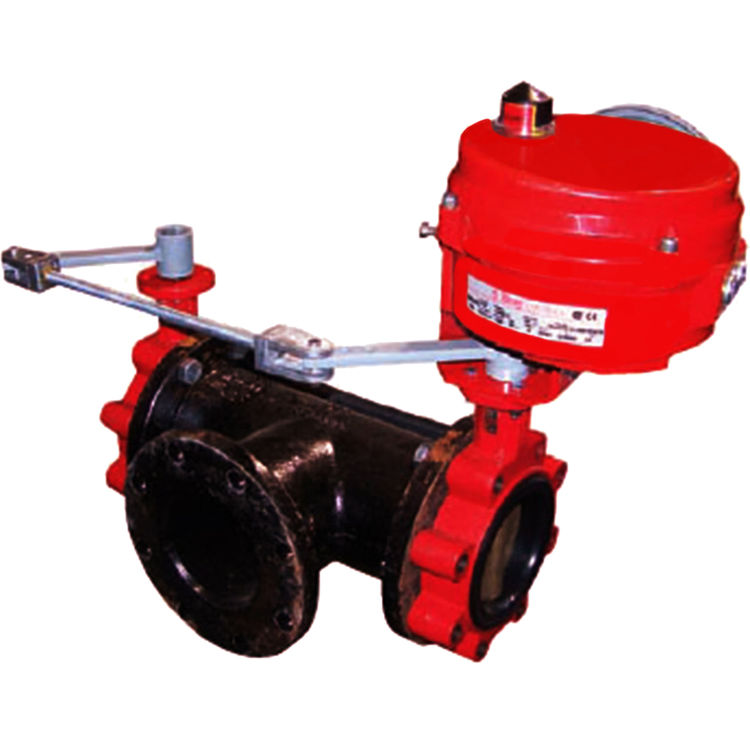

Honeywell VFF6HW1Y2A 3-Way 3-Inch Resilient Seat Butterfly Valve

SKU: 379436

Save 58% · Retail: $1,631.81

  Available to Ship in 4-5 weeks

Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Honeywell VFF6HW1Y2A

The Honeywell VFF6HW1Y2A 3-Way3-Inch Resilient Seat Butterfly Valve is a stainless steel valve stem that has an actuator that provides minimum torque required for full valve shut-off position. This Honeywell valve uses a flexible seat design and nylon disk coating that prevents metal valve parts from being unprotected to chemicals in the water. With this design it will be suitable for control of hot water or chilled-water solutions. The flow control characteristic of this valve can be adjusted for equal ratio or percentage. The Honeywell VFF6HW1Y2A 3-Way 3-Inch Resilient Seat Butterfly Valve uses cast iron valve body polyester-coated that is built for tough weather conditions, chemical exposure, ultra-violet contact, scrapes, and impact protection. The cast iron disk of this valve uses Nylon 11-coated that is completely protected to corrosion that lessens friction. The construction of Honeywell VFF6HW1Y2A 3-Way 3-Inch Resilient Seat Butterfly Valve makes it an easy choice for chilled water systems. Field or outdoor applications for electrical and electronic actuators is also available with weatherproof covers. The technology it uses prevents condensation that is vital to an efficient and well run chiller systems and other high-water-flow applications. Honeywell butterfly valves are tightly packed and easy to control, yet skillfully built for long-lasting, reliable performance.

Product Details

Other Info: Easy To Install
Trade Tools: HVAC
Manufacturer: Honeywell
Style: 3 Way
Product: Butterfly
Connection Type: Flanged
Electrical Voltage: 24 Volt
Mpn # VFF6HW1Y2A

Product Features

  • Sizes from 2 to 20 inches with ANSI Class 125/150 lug pipe connections.
  • Bi-directional flow.
  • Modified equal percentages flow characteristic.
  • Extended neck for 2 inches of pipe insulation.
  • Nylon 11-coated, cast iron disks for corrosion resistance.
  • Reduced friction and use of lower-torque actuators with larger valves body sizes.
  • Cast iron valve body polyester-coated for weather, chemical, ultra-violet, abrasion, and impact protection.
  • Stainless steel valve stem with close-tolerance internal double-D disk connection with no points for corrosion access.
  • Peroxide-cured EPDM resilient valve seat doubles as flange gasket.
  • Bubble-tight seat leakage at rated close-off.
  • Close-off rating of 175 psid in sizes 2 in. to 12 in. with full-cut disks.
  • Close-off rating of 150 psid in sizes 14 in. to 20 in. with full-cut disks.
  • 250 psi end-of-line close-off pressure rating with non-automated valves.
  • 50 psid close-off rating, lower operating torque with undercut disks.
  • ISO 5211 actuator mounting flange.
  • Actuators available in NEMA 2 (general purpose), NEMA 4X (watertight/corrosion-resistant), and NEMA 4 (watertight) enclosures.
  • Anti-condensate heaters standard with NEMA 4X and NEMA 4 actuators.
  • Declutchable override handwheel standard with NEMA 4X actuators.
  • Non-declutchable, override handwheel standard with NEMA 4 actuators.
  • Available with four, factory-installed electric actuation interfaces in 24V and 120V power: 2-position spring return,
  • Floating (tri-state), Modulating (2-10 Vdc), Modulating/Floating Spring Return.
