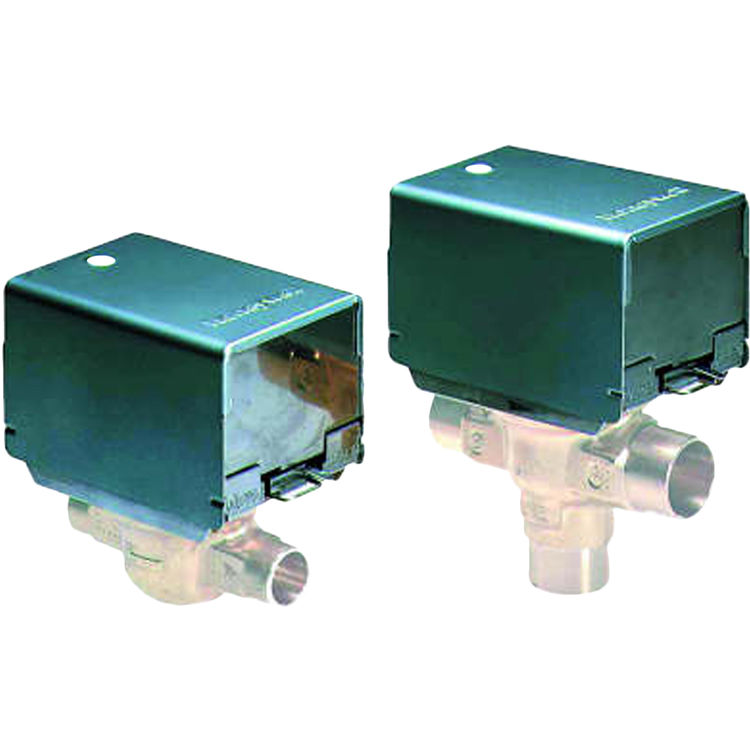

Honeywell VU444A1007/B Valve Actuator w/ 6" Leads

SKU: 380518

$48.81/ea
Save 61% · Retail: $126.56

See buying options below:




Ships From Price Qty
Massachusetts Warehouse
Ships in 1-3 Days
$49.36/ea 12
Order From Manufacturer
Available to Ship in 4-5 weeks
$48.81/ea

About the Honeywell VU444A1007

Honeywell VU444A1007/B Valve Actuator with 6" Leads. The VU444 humidity resistant, Fan Coil Valve Actuators are used" conjunction with VU52, VU53 and VU54 Valves for controlling the flow of hot or chilled water" commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors.

Product Details

Product: Actuator
Manufacturer: Honeywell
Mpn # VU444A1007
Weight 0.75 lbs.

Product Features

  • HVAC
  • 120V
  • Driving-- 6 Watts
  • 34 F to 125 F ambient at 200 F Fluid
  • 1 C to 52 C ambient at 93 C Fluid
  • 0
  • 94 C
  • 200 F
  • Valve
  • Two position; SPST
  • Spring Return
  • 2 3/8 in. high, 3 1/2 in. wide, 2 3/8 in. wide
  • 45 deg.
  • Driving @ 60 Hz (sec)-- 15 sec maximum
  • Nominal-- 6 sec
  • Depends on Cv rating of valve
  • Lever
  • 6 in.
  • 0.15 m
  • 62 mm high, 88 mm wide, 60 mm deep
  • 2-way NO (VU52) or 3-way VU valve body (VU54)
  • Stainless Case, Aluminum Cover
  • For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
  • 60 Hz
  • Certified C/US File No. LR1322
  • Leads
