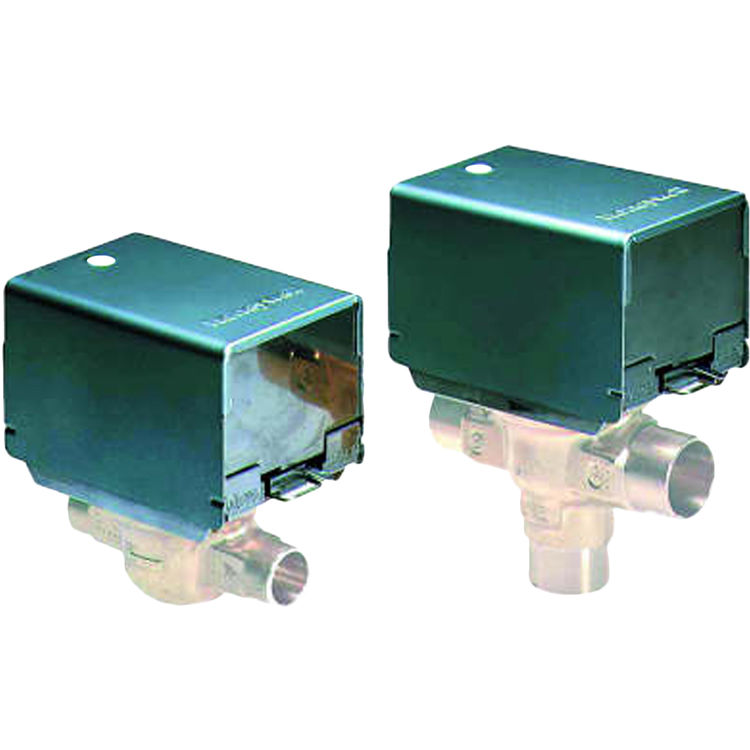

Honeywell VU444A1155/U Two-Position Actuator

SKU: 380521

$81.74/ea
Save 59% · Retail: $198.66

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$81.74/ea

About the Honeywell VU444A1155

Honeywell VU444A1155/U Two-Position Actuator. The VU444 humidity resistant, Fan Coil Valve Actuators are used" conjunction with VU52, VU53 and VU54 Valves for controlling the flow of hot or chilled water" commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors.

Product Details

Product: Actuator
Manufacturer: Honeywell
Style: Parts
Mpn # VU444A1155
Weight 1.10 lbs.

Product Features

  • HVAC
  • 120V
  • Driving-- 6 Watts
  • 34 F to 125 F ambient at 200 F Fluid
  • 1 C to 52 C ambient at 93 C Fluid
  • 0
  • 94 C
  • 200 F
  • Valve
  • Two position; SPST
  • Spring Return
  • 2 3/8 in. high, 3 1/2 in. wide, 2 3/8 in. wide
  • 45 deg.
  • Driving @ 60 Hz (sec)-- 15 sec maximum
  • Nominal-- 6 sec
  • Depends on Cv rating of valve
  • Lever
  • 6 in.
  • 0.15 m
  • 62 mm high, 88 mm wide, 60 mm deep
  • 2-way NO (VU52) or 3-way VU valve body (VU54)
  • SS case, Aluminum cover, Ni-plated motor
  • Nickel plated motor for added humidity resistance; For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
  • 60 Hz
  • Certified C/US File No. LR1322
  • Leads
