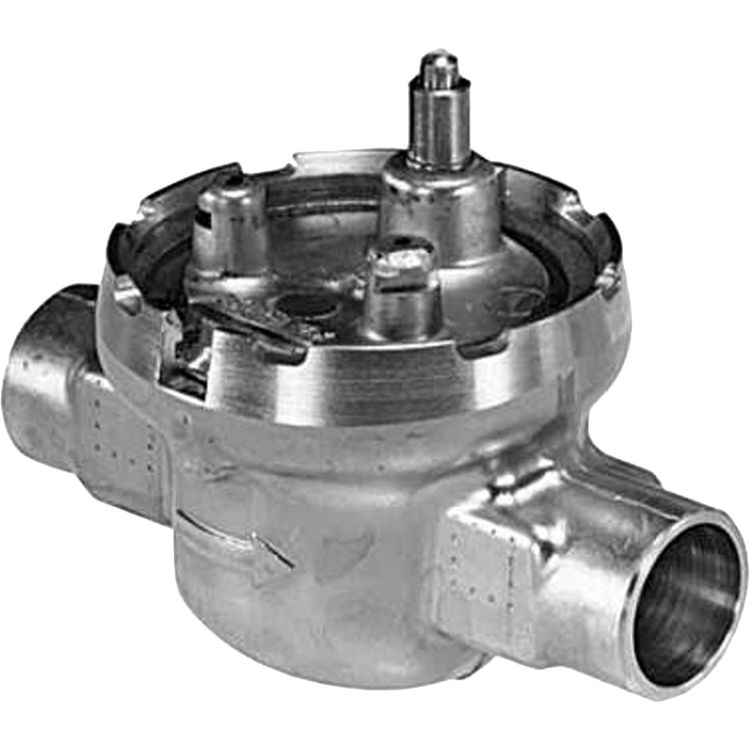

Honeywell VU52N1019/U Two-Way Fan Coil Valve

SKU: 380523

Save 52% · Retail: $65.68

In Stock and Ready to Ship

Ships From Price Qty
Illinois Warehouse
Ships in 3-5 days
$31.71/ea 7
Order From Manufacturer
Available to Ship in 4-5 weeks

About the Honeywell VU52N1019

Honeywell VU52N1019/U 1/2" Two-Way Fan Coil Valve. The VU52 pressure, Two-Way, Fan Coil zone valves, are used to control flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. IMPORTANT: Not for use in systems containing dissolved oxygen.

Product Details

Product: Coil
Manufacturer: Honeywell
Style: 2 Way
Mpn # VU52N1019
Weight 0.95 lbs.

Product Features

  • A to B ports End to End--2 3/4 in.; Center Line of A&B ports to end of AB port--1 3/8 in.
  • Two-way, Straight-through
  • 1/2 in.
  • DN15
  • 20 psi
  • 138 kPa
  • 3.5 Cv
  • 3.0 kvs
  • Normally Open
  • Fan Coil Valve
  • Chilled or hot water with up to 60% Glycol
  • A to B ports End to End--70 mm; Center Line of A&B ports to end of AB port--35 mm
  • Brass
  • Quick Opening
  • Must be purchased separately
  • Buna-N rubber
  • EPDM rubber
  • 300 psig
  • 2068 kappa
  • VU444 Actuator, VU844 Actuator
  • CSA C/US
  • 34 F to 125 F at 200 F Fluid
  • 1 to 52 C @ 94 C Fluid
  • Female NPT
