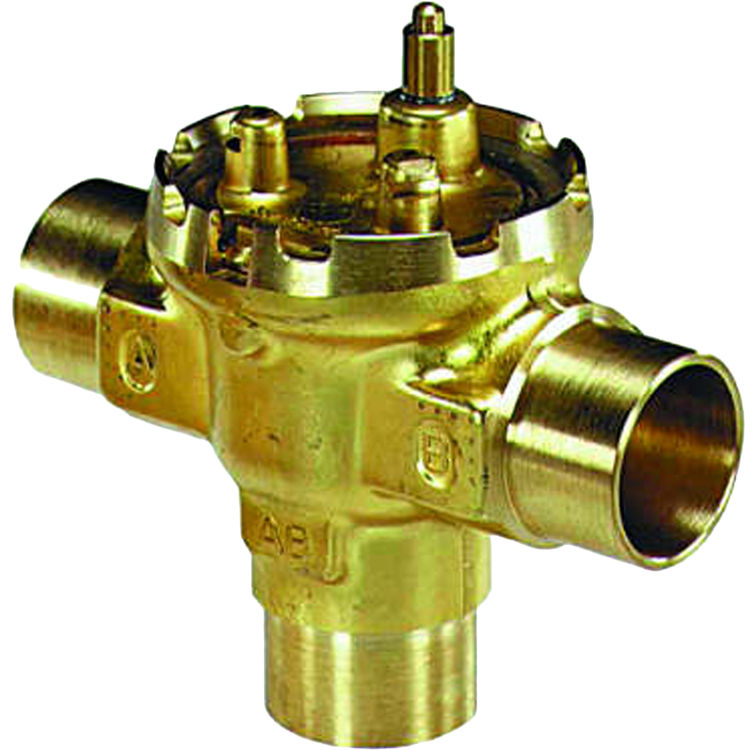

Honeywell VU54N1015/B 3-Way Fan Coil Valve

SKU: 380549
Minimum Quantity: 1

$51.18/ea
Save 59% · Retail: $124.98

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$51.18/ea

About the Honeywell VU54N1015

Honeywell VU54N1015/B 3/4" NPT Three-Way Fan Coil Valve. The VU54 high pressure zone valves are used to control the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. IMPORTANT These valves are not for use in systems containing dissolved oxygen.

Product Details

Product: Coil
Manufacturer: Honeywell
Style: 3 Way
Mpn # VU54N1015
Weight 1.55 lbs.

Product Features

  • A to B ports End to End--3 3/8 in.; Center Line of A&B ports to end of AB port--1 11/16 in.
  • Three-way A-AB-B
  • 3/4 in.
  • DN20
  • 10 psi
  • 69 kPa
  • 7.0 Cv
  • 6.5 kvs
  • Mixing
  • Fan Coil Valve
  • Chilled or hot water with up to 60% Glycol
  • A to B ports End to End--86 mm; Center Line of A&B ports to end of AB port--43 mm
  • Brass
  • Quick Opening
  • Must be purchased separately
  • Buna-N rubber
  • EPDM rubber
  • 300 psig
  • 2068 kappa
  • VU444 Actuator, VU844 Actuator
  • CSA C/US
  • 34 F to 125 F at 200 F Fluid
  • 1 to 52 C @ 94 C Fluid
  • Female NPT
