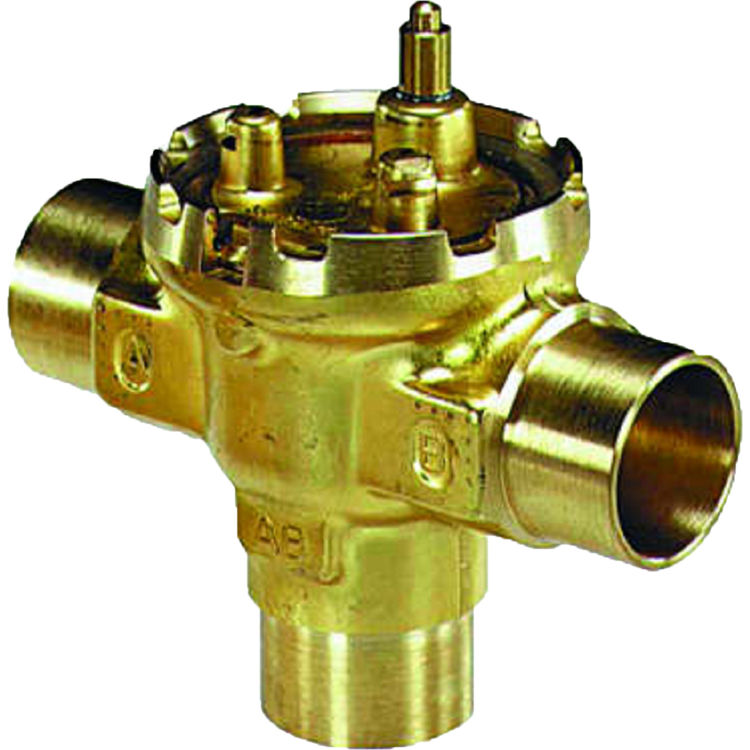

HONEYWELL VU54S2040 FAN COIL VALVE ASSY 1/2 INCH SHORT SWEAT 3-WAY 3 0CV

Name: HONEYWELL VU54S2040 FAN COIL VALVE ASSY 1/2 INCH SHORT SWEAT 3-WAY 3 0CV
Brand: Honeywell
SKU: 380556

SKU: 380556

We are Sorry we no longer carry this item.

Check below for similar items!

About the Honeywell VU54S2040

About the HONEYWELL VU54S2040 FAN COIL VALVE ASSY 1/2 INCH SHORT SWEAT 3-WAY 3 0CV

Three-way Fan Coil Valve, the VU54 high pressure zone valves are used to control the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors.

Product Details

Manufacturer:	Honeywell
Mpn #	VU54S2040
Weight	0.80 lbs.

Product Features

Actuation Must be purchased separately
Ambient Temperature Range (C) 1 to 52 C @ 94 C Fluid
Ambient Temperature Range (F) 34 F to 125 F at 200 F Fluid
Maximum Safe Operating Pressure (kPa) 2068 kappa
Maximum Safe Operating Pressure (psi) 300 psig
A to B ports End to End--2 5/8 in.; Center Line of A&B ports to end of AB port--1 5/16 in.
â€¢ Choice of NPT end connections for iron or steel piping.
â€¢ Quick opening flow curve.
â€¢ Triple O-ring seal provides three lines of defense against corrosion and water leakage around drive shaft.
â€¢ Patented ball seal provides long service life, soft close off
â€¢ 300 psi (2,000 kPa, PN20) operating pressure rating
Quick Opening
â€¢ VU54 provides three-way diverting control of water.
â€¢ Fits under the cover of most baseboard convectors with actuator fitted to valve body.
â€¢ Compact construction for easy installation.
Chilled or hot water with up to 60% Glycol
Capacity (Kv) 2.6 kvs
Capacity (Cv) 3.0 Cv
Maximum Differential Pressure Ratings (Close-off) (kPa) 172 kPa
Maximum Differential Pressure Ratings (Close-off) (psi) 25 psi
Pipe Size (DN) DN15
Pipe Size (inch) 1/2 in.
