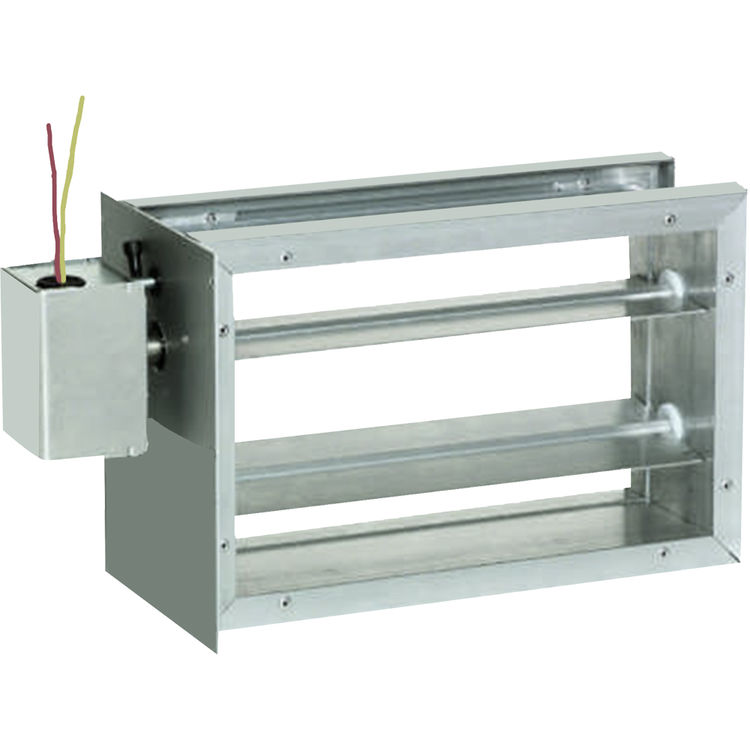

Honeywell ZD8X24 24v Parallel Blade Damper for Zoning Systems

SKU: 380775
Minimum Quantity: 1

$155.76/ea
Save 61% · Retail: $396.22

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$155.76/ea

About the Honeywell ZD8X24

The Honeywell ZD8X24 24V Parallel Blade Zone Damper has a durable 24 volt spring return motor that is dependable. It has the basic operation that is simple and very easy to wire. This Honeywell ZD8X24 24V Parallel Blade Zone Damper is compatible with standard and networked zoning. It has a sound perfect operation with lesser blades. The Honeywell ZD8X24 24V Parallel Blade Zone Damper has the firm and hard construction using extruded aluminum frame and blades. It has an automatic visual position indicator for damper status and its dimensions are 8 inches x 24 inches damper with the motor on the 10 inches side. It can be mounted on the bottom or at the side of the duct as the application requires. It has a hassle free and a very easy installation. It’s a 2 wire connection, 90 Deg, Timing Rotation Angle (Sec) 30, with an Ambient Temp Range 40F-140F, its Power Method is 24 Volts, and has the Application Controls of Air Flow in Heating and Cooling Systems.

Product Details

Product: Damper
Manufacturer: Honeywell
Material: Aluminum
Style: Parallel Blade Air Damper
Shape: Rectangle
Color:
Electrical Voltage: 24 Volt
Mount Type:
Trade Tools: HVAC
Mpn # ZD8X24
Weight 8.85 lbs.

Product Features

  • Mechanical visual position indicator for damper status
  • Quiet operation with fewer blades.
  • Simple, easy-to-wire, two-wire operation.
  • Parallel blade design for low leakage performance.
  • Easy slip-in design.
  • Close and spring open damper
  • Used with the True ZONE systems and other electronic zoning systems.
  • Solid construction using extruded aluminum frame and blades.
  • Application Controls Air Flow In Heating And Cooling Systems
  • Output Amps .32A
  • Rotation Angle 90 Deg, Timing (Sec) 30
  • Compatible with conventional and networked zoning.
  • Ordering Instructions: Order ZD (dimension 1) x (dimension 2). (Motor is always mounted on dimension 2 side.) For example, ZD10x8 is a 10 in. x 8 in. damper with the motor on the 8 in. side; but a ZD8x10 is a 8 in. x 10 in. damper that has the motor on the 10 in. side.
  • Kevlar gearing reduces wear, more than doubling damper life.
  • Can be mounted on the side or bottom of the duct, as the application requires.
  • Reliable spring-return motor.
  • Simple, easy-to-wire, two-wire installation.
  • Mechanical Visual Position for Damper Status
  • Fail-safe, normally-open operation.
  • Strong 24-volt spring-return motor.
