K-rain 3606 Rps 469 Controller, 6-Station, 110 Volt

SKU: 94745

We are Sorry we no longer carry this item.

Check below for similar items!

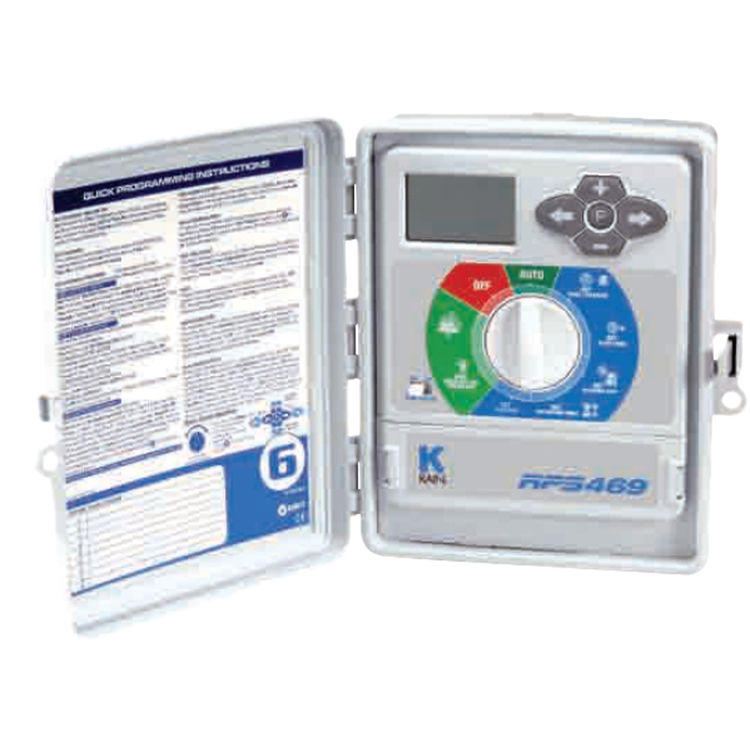

About the K-Rain 3606

The K-Rain 3606 RPS 469 is a 6-station sprinkler system controller with a built-in 110-volt transformer. Designed for residential as well as light commercial indoor/outdoor installations, this K-Rain controller makes highly efficient irrigation possible with 6 fully-independent programs, allowing up to 6 starts per program for an exceptional maximum of 36 starts per station per day. Station run-times can be programmed from 1 minute to 12 hours 59 minutes; and watering durations can be adjusted in 10% increments from 10% to 200%. Operation is completely flexible with automatic, semi-automatic, and single-station manual modes. An optional rain sensor can be connected to the Model RPS 469 and set to control individual stations, so when wet conditions are detected, automatic watering is prevented or allowed based on the watering requirements you specify, such as for a station in a covered garden area that receives no rain. The K-Rain 3606 RPS 469 6-station controller is protected by a weatherproof enclosure; and it is backed by a two-year warranty. With more than 95 patents and over 40 years proving their products in the harshest of real-world environments, K-Rain has become an industry leader for commercial and residential irrigation in manufacturing gear-driven rotors, sprinklers, sprays, valves, and controllers that are easy to install, set, and use.

Product Details

Product: Controller
Manufacturer: K-Rain
Electrical Voltage: 110-120 Volt
Other Info: LCD Screen
Use: Residential & Commercial
Mpn # 3606
Shipping Dimensions 7.8" x 2.8" x 2.8"
Weight 0.70 lbs.

Product Features

  • 4-, 6- and 9-Station Models: Perfect for residential and light commercial applications.
  • 6 Fully Independent Programs: Allowing up to 6 starts per program. Maximum 36 starts per day per station.
  • Outdoor or indoor installation.
  • Water Conservative: Allows for quick adjustment of watering durations in 10% increments, from 10% to 200%.
  • Rain-Sensor Ready: Accepts rain sensor and allows individual stations to be set and controlled by the sensor to inhibit automatic watering when wet conditions are detected by a suitable sensor.
  • Flexible Operation: Automatic, semi-automatic, and single-station manual.
  • System Test: Allows a full-system check for valve operation.
  • Weatherproof Enclosure: Ensures long product life.
  • Dimensions (inches): Height 8.8 x Width 7.9 x Depth 2.9
  • Station Run Times: 1 minute to 12 hours 59 minutes
  • Watering Schedule: 7-day calendar with individual day selection, or 1- to 15-day interval watering, or 365-day calendar for ODD/EVEN day or interval watering.
  • Master valve/pump can be enabled or disabled by station or by program.
  • Electrical Power Supply: 110-120 VAC/60Hz (220-240 VAC/50Hz options available)
  • Electrical Outputs: 24 Volts AC, 1.0 Amp
  • Power to Solenoid Valve: 24 VAC 50/60 Hz, 0.75 Amp max. NOTE: Up to 3 valves per station on inbuilt model.
  • Total output load must not be exceeded by the valves and pump start requirements.
  • Overload protection: Standard 20mm 1.0 Amp fuse
  • Power Failure: The controller has permanent memory so the data are always backed up, even during power outages.
  • Capable of programming remotely using a standard 9-volt alkaline battery (sold separately), which also maintains clock and programs during power outages.
  • Wiring: The output circuits should be installed and protected in accordance with wiring rules.
  • Warranty: Two Years


Rated 5 out of 5 based on 1 reviews

Perfect Timer for Customization Rated 5 by hummvee69
  Yes, I recommend this product.
This timer was purchased because of the number of programs it has. Because of special circumstances, I can only run my sprinkler for about 10 minutes every hour. Traditional timers only have 3 programs which makes watering 5 zones evenly very difficult.
Originally posted on Jun/2016
