Little Giant 506600 Little Giant 506600 HT-6E-CIA-FS High Temperature Submersible Effluent Pump

Little Giant 506600 HT-6E-CIA-FS High Temperature Submersible Effluent Pump

SKU: 104777
$480.06/ea
 Free Shipping!
Save 60% · Retail: $1,200.00

  Available to Ship in 4-5 weeks


Ships From Price Qty
Order From Manufacturer
Available to Ship in 4-5 weeks
$480.06/ea

About the Little Giant 506600

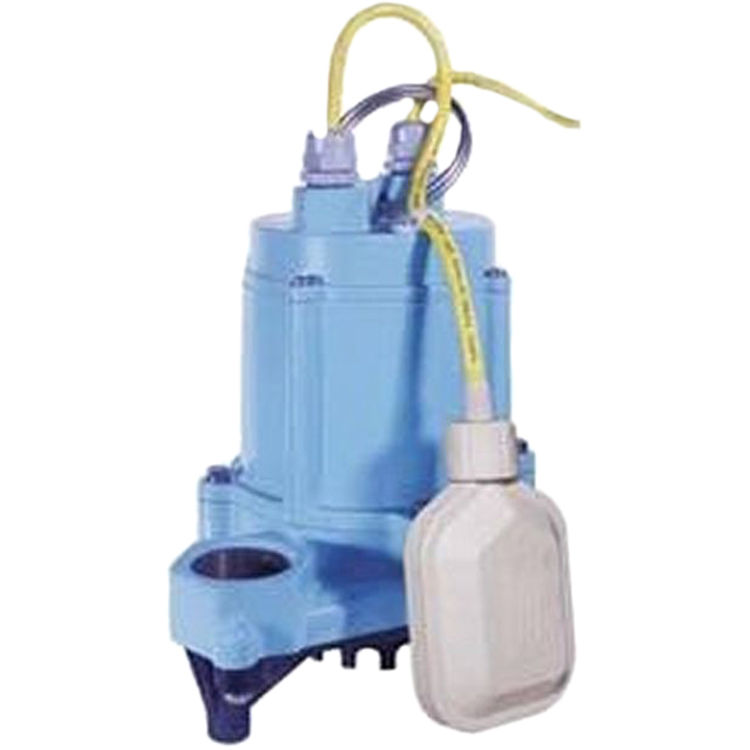

The Little Giant 506600 HT-6E-CIA-FS High Temperature Submersible Effluent Pump is suitable for boiler blow-down sump pits, water transfer, transformer vaults, and light effluent. It is also designed for pumping other non-flammable liquids not exceeding 200°F in temperature. The pump has a discharge size of 1-1/2" FNPT (38 mm) in diameter with so it can handle solids of up to 1/2” (12.7 mm). It has a 1/3 hp motor. This Little Giant 506600 HT-6E-CIA-FS High Temperature Submersible Effluent Pump can pump up to 50 GPM at 5' head pressure and up to 27 GPM at 15’ head pressure. It comes with an integral mechanical float switch. It includes a 15’ cord. The needed voltage to run this pump is 115V single phase. It features a shaded pole motor protected from thermal overload. More details are available in the specification sheets. The Little Giant 506600 HT-6E-CIA-FS High Temperature Submersible Effluent Pump is covered by a Limited Warranty for a period of 24 months from purchase date or 30 months from manufacture date whichever takes place first. This product proudly bears the CSA mark and is recognized for meeting the required environmental performance standards. Little Giant and its parent company, Franklin Electric, have been making pumps for over 70 years. The quality, durability and dependability of their products have made them a world leader in pumps of virtually every variety.

Manufacturer: Little Giant
Mpn # 506600
Weight 32.00 lbs.
  • 115 Vac 60 Hz Single Phase 15 Foot Cord
  • Thermal Overload Protection
  • 1/3 Horse Power
  • 3000 Gallon Per Hour At 5 Foot Rise 20 Foot Max Height
  • Handles Liquids Up To 200 Degrees F
  • 1/2
  • Cast iron pump housing with protective epoxy coating for corrosion resistance
  • Integral Mechanical Float Switch
  • Stainless Steel Screws, Bolts And Lifting Ring To Protect Against Corrosion
  • Automatic Operation Has 10
